Description
Product Overview

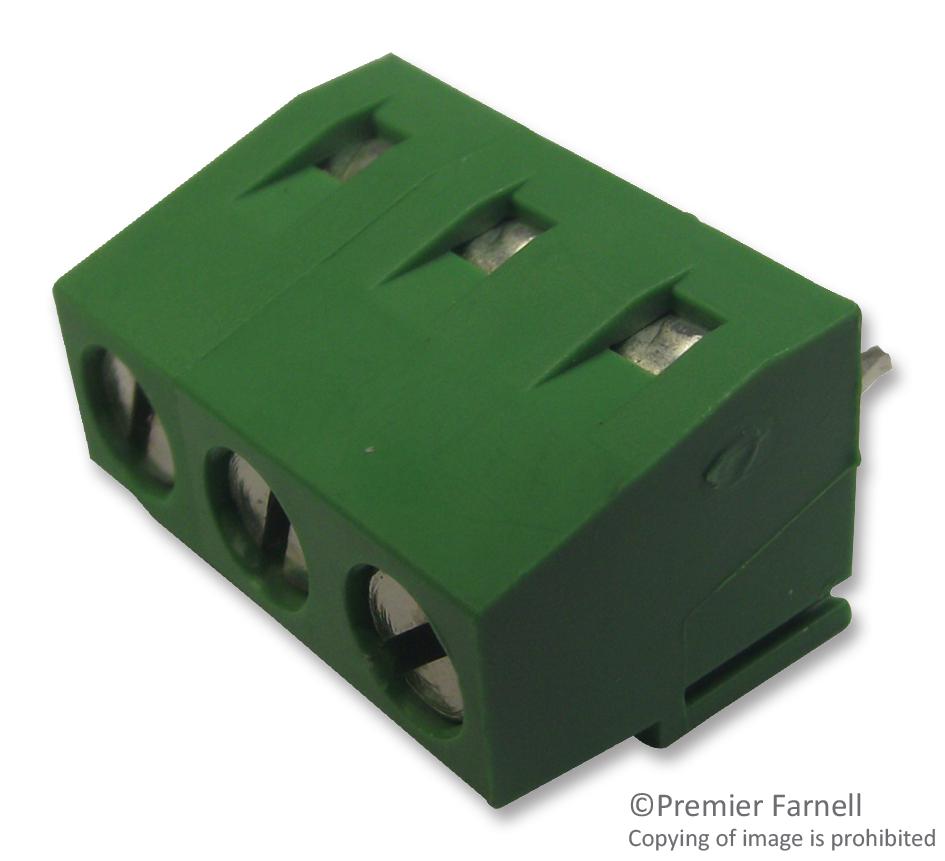

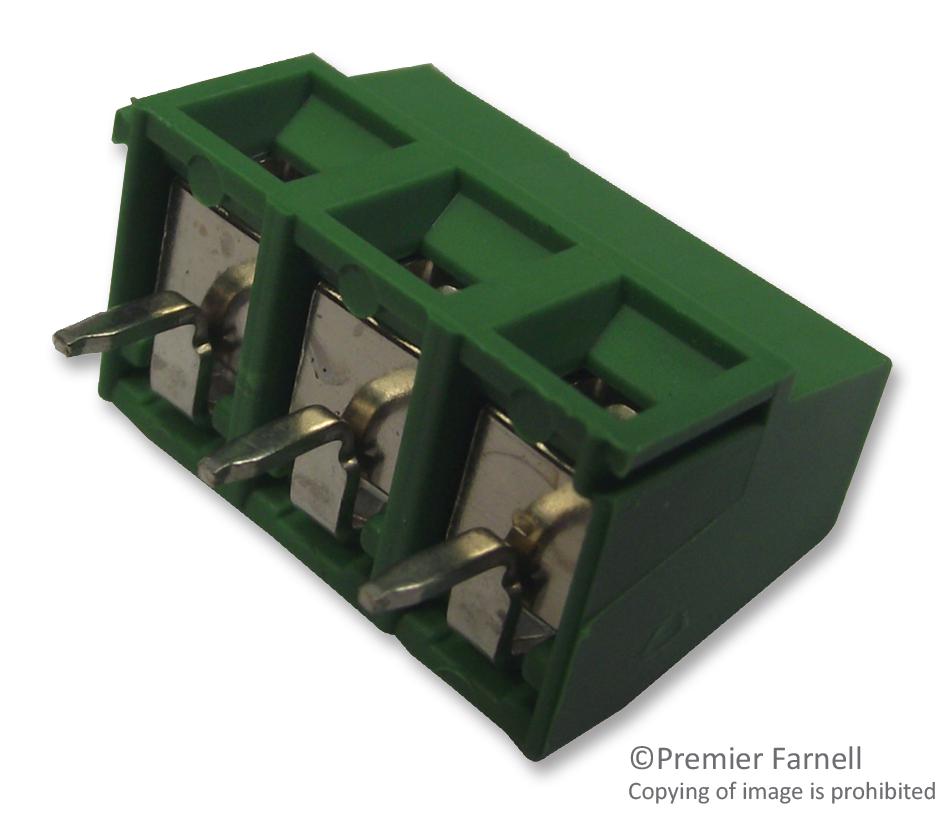

The 282836-3 is a 3-position 1 row 5mm PCB mount Terminal Block with vertical through hole orientation and side wire entry angle. It has tin-plated brass contacts, nickel-plated M3 brass screws in a polyamide 6.6 GF green housing and Interlocking system, screw wire connection method and accepts 30AWG to 16AWG wires.
- End-to-end stackable with interlock and without loss of centreline spacing
- Green colour
- Polyamide 6.6 - GF material
- Receptacle style
- Side wire entry angle
- Without stacked levels
- Brass contact
- Tin plating
- -40 to +105°C Temperature range
- M3 Screw size
- UL94V-0 Flammability rating
Applications
Commercial, Industrial
Product details
| Pitch Spacing | 5mm |
| Wire Size AWG Min | 30AWG |
| Conductor Area CSA | 1.4mm² |
| Rated Current | 13.5A |
| Block Orientation | Through Hole Vertical |
| SVHC | Lead (04-Feb-2026) |
| No. of Positions | 3Ways |
| Wire Size AWG Max | 16AWG |
| Wire Connection Method | Screw |
| Rated Voltage | 300V |
| Product Range | Termi-Blok 5mm PCB Mount |
Other details
| Brand | TE CONNECTIVITY - BUCHANAN |
| Part Number | 282836-3 |
| Quantity | Each |
| 3D Product Image (98.34KB) EN | View or download |
| Application Note (301.94KB) EN | View or download |
| Drawing (348.17KB) EN | View or download |
| Manufacturer Catalogue (1.08MB) EN | View or download |
| Technical Data Sheet (447.75KB) EN | View or download |
| Product Change Notice (638.04KB) EN | View or download |
