Product Overview

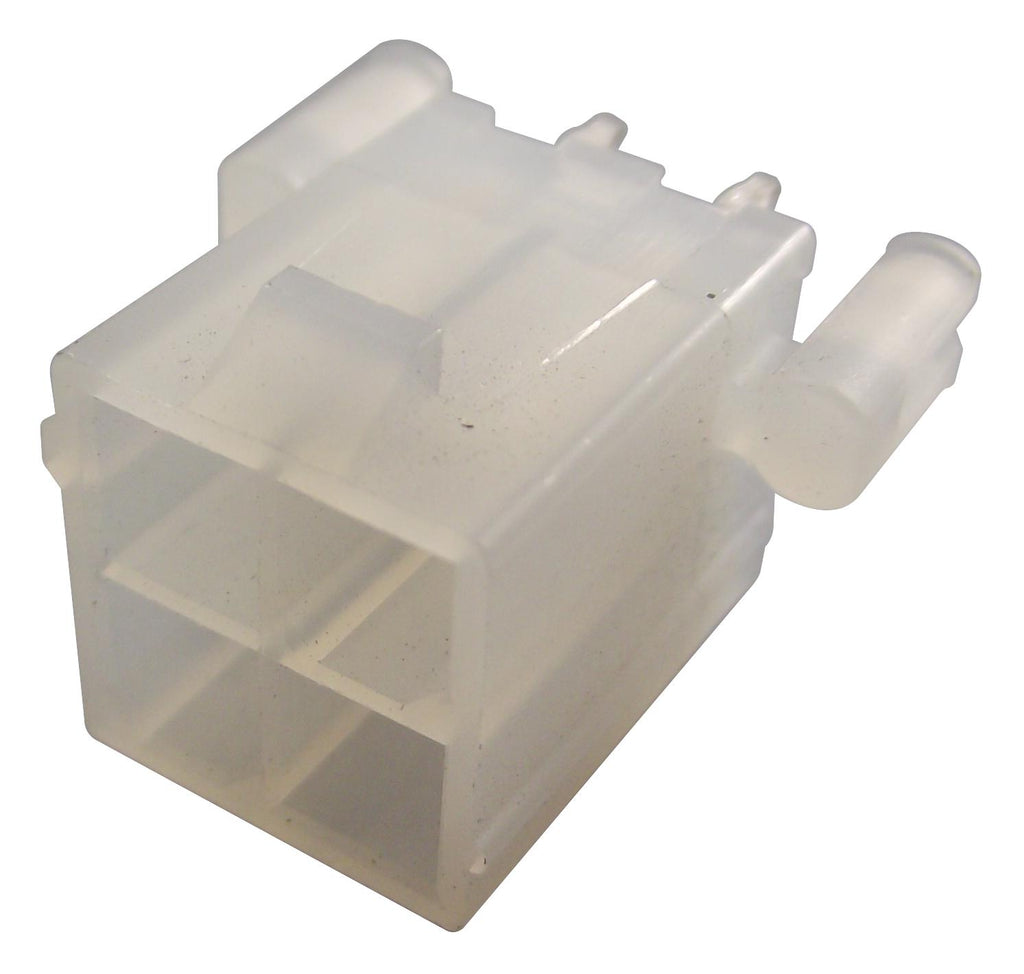

39-29-9064 is a 5566 series, 4.20mm pitch, Mini-Fit Jr. vertical header. The 5566 header should be used with standard Mini-Fit female terminals. Mates with 172708 Mini-Fit TPA2 and Mini-Fit Sigma dual row receptacle housings and 5557 Mini-Fit Jr. receptacle housings. Suitable for power, wire-to-board applications.
- Dual row and vertical orientation with Snap-in Plastic Peg PCB Lock
- 9A current maximum per contact
- 600V voltage maximum
- 6 maximum circuits and 6 loaded circuits
- Durability (mating cycles max) is 30
- Fully shrouded and through hole termination interface style
- Brass metal material and gold material - plating mating
- Natural colour nylon resin
- Features PCB retention, polarized to PCB and polarized to mating part
- Operating temperature range from -40° to +105°C
Product details
| Connector Systems |
Wire-to-Board |
| No. of Rows |
2Rows |
| Contact Termination Type |
Through Hole Straight |
| Connector Shroud |
Shrouded |
| Contact Plating |
Gold Plated Contacts |
| Connector Body Material |
Nylon 6.6 (Polyamide 6.6) Body |
| Contact Current Rating |
9A |
| Pitch Spacing |
4.2mm |
| No. of Contacts |
6Contacts |
| Product Range |
Mini-Fit Jr. 5566 Series |
| Contact Material |
Brass |
| Connector Type |
PCB Header |
| Connector Orientation |
Straight |
| SVHC |
No SVHC (04-Feb-2026) |
