Description
Product Overview

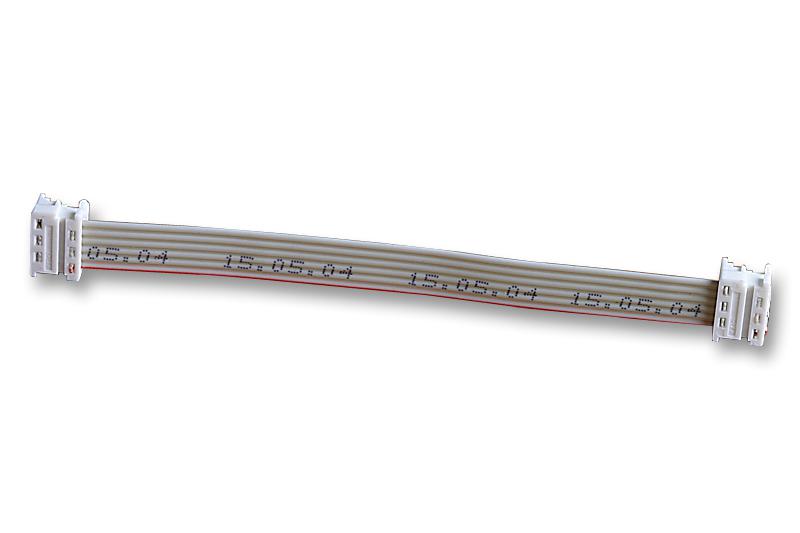

The 92315-0625 is a 250mm 6-way natural Picoflex® Ribbon Cable Assembly with a female PF-50 IDT connector on each end. The 92315 series cable is made of PVC. The connector contacts are made of phosphor bronze. A strong one-piece upper housing provides excellent cable retention and is ideal for small circuit size applications. The high-reliability contact features a four-point interface with the cable and two points of contact between the header and receptacle. Picoflex also offers excellent polarization to both the PCB and between the female connector and header. It mates with 90325, 90800, 90779, 90715 and 90814 headers.
- 250V Maximum voltage
- 1.2A Maximum current per contact
Applications
Automotive, Consumer Electronics, Communications & Networking, Industrial, Medical
Product details
| Connector to Connector | PF50 Receptacle to PF50 Receptacle |
| Cable Length - Imperial | 9.8" |
| Connector Pitch | 1.27mm |
| Cable Assembly Type | - |
| No. of Positions | 6Ways |
| Cable Length - Metric | 250mm |
| Product Range | Picoflex 92315 Series |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | MOLEX |
| Part Number | 92315-0625 |
| Quantity | Each |
| Technical Data Sheet (36.26KB) EN | View or download |
| CAD Multiple Formats (249.76KB) EN | View or download |
| Technical Data Sheet (27.55KB) EN | View or download |
| Product Change Notice (230.35KB) EN | View or download |
| Drawing (59.98KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 282.46 |
| 3-5 | ₹ 279.57 |
| 5-10 | ₹ 273.81 |
| 10+ | ₹ 268.04 |
Bulk discount will be automatically applied during checkout based on quantity.
