Product Overview
NXP FS32K148HFT0VLQT ARM MCU, S32 Family S32K1xx Series Microcontrollers, ARM Cortex-M4F, 32 bit, 80 MHz, 2 MB
Product details
| Product Range |
S32 Family S32K1xx Series Microcontrollers |
| Data Bus Width |
32 bit |
| Program Memory Size |
2MB |
| IC Case / Package |
LQFP |
| Interfaces |
CAN, Ethernet, I2C, I2S, SAI, SPI, UART |
| ADC Channels |
64Channels |
| Supply Voltage Min |
2.7V |
| Operating Temperature Min |
-40°C |
| IC Mounting |
Surface Mount |
| MCU Series |
S32K1xx |
| MSL |
MSL 3 - 168 hours |
| Device Core |
ARM Cortex-M4F |
| Operating Frequency Max |
80MHz |
| No. of Pins |
144Pins |
| No. of I/O's |
128I/O's |
| RAM Memory Size |
256KB |
| ADC Resolution |
12Bit |
| Supply Voltage Max |
5.5V |
| Operating Temperature Max |
105°C |
| MCU Family |
S32 |
| Qualification |
AEC-Q100 |
| SVHC |
No SVHC (27-Jun-2024) |
Other details

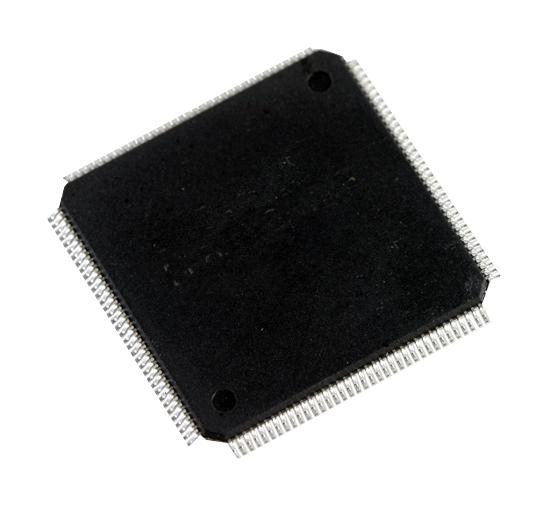

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
