Product Overview

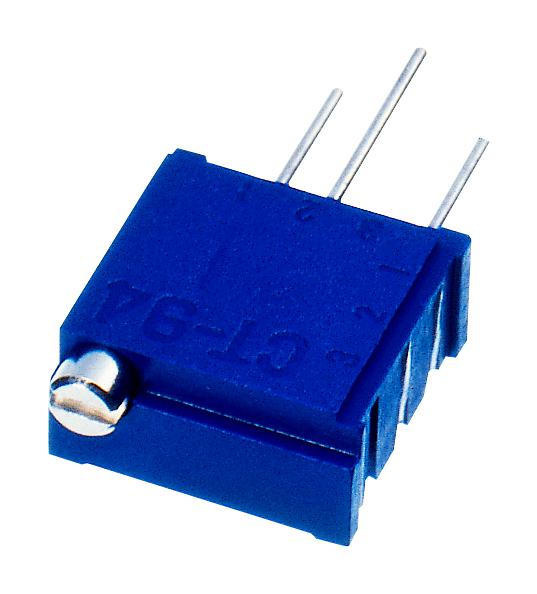

NIDEC COMPONENTS CT-94EY503 Trimmer, Multi Turn, RuO2 Cermet, Top Adjust, 50 kohm, Through Hole, 18 Turns
Product details
| Trimmer Type |
Multi Turn |
| Adjustment Type |
Top Adjust |
| Potentiometer Mounting |
Through Hole |
| Product Range |
CT-94 Series |
| Resistance Tolerance |
± 10% |
| Trimmer Shape / Size |
9 mm Square |
| Product Length |
9.6mm |
| Product Height |
9.6mm |
| Operating Temperature Max |
125°C |
| SVHC |
To Be Advised |
| Element Material |
RuO2 Cermet |
| Track Resistance |
50kohm |
| No. of Turns |
18Turns |
| Power Rating |
500mW |
| Temperature Coefficient |
± 100ppm/°C |
| Resistor Case / Package |
- |
| Product Width |
4.8mm |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
Other details
| Brand |
NIDEC COMPONENTS |
| Part Number |
CT-94EY503 |
| Quantity |
Each |
| Technical Data Sheet (88.27KB) EN |
View or download |
