Description
Product Overview

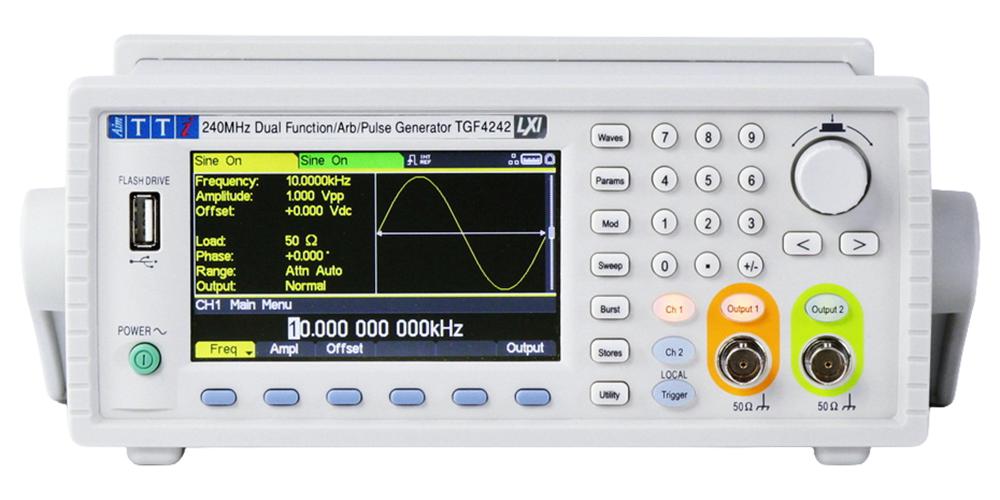

TGF4000 series is the latest function/arbitrary generator series from Aim-TTi offering class-leading performance. A frequency capability of up to 240MHz is combined with two identical full performance channels that can operate as independent generators or in coupled or tracking modes. Precise channel to channel phase control with a resolution of 0.001deg is provided. PC based arbitrary waveform generation and editing software is also provided.
- 15 digits or 1μHz resolution
- Outputs up to 10V pk-pk into 50Ω (20V pk-pk EMF) for frequencies up to 80MHz
- Wideband noise generator / high resolution pulse generator
- Arbitrary waveforms up to 16bits at 800MSa/s
- Comprehensive internal/external digital and analog modulations
- Harmonics generation upto 16th harmonic
- Two identical channels with phase control, coupling and tracking
- USB and LXI compliant LAN interfaces, plus optional GPIB interface
Applications
Instrumentation
Notes
In addition, we offer standard calibration service for this product. Visit our calibration service page for more details.
Product details
| Signal Generator Type | Arbitrary, Function, Pulse |
| Product Range | TGF4000 Series |
| Signal Generator Modulation | AM, ASK, BPSK, FM, FSK, PM, PWM, SUM |
| Plug Type | - |
| No. of Channels | 2 Channel |
| Bandwidth | 240MHz |
| Manufacturer Warranty | 3 Years |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | AIM-TTI INSTRUMENTS |
| Part Number | TGF4242 |
| Quantity | Each |
| Technical Data Sheet (5.62MB) EN | View or download |
| User Manual (4.95MB) EN | View or download |
| Operating Instructions (4.72MB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 341642.92 |
| 3-5 | ₹ 338156.76 |
| 5-10 | ₹ 331184.46 |
| 10+ | ₹ 324212.15 |
Bulk discount will be automatically applied during checkout based on quantity.
