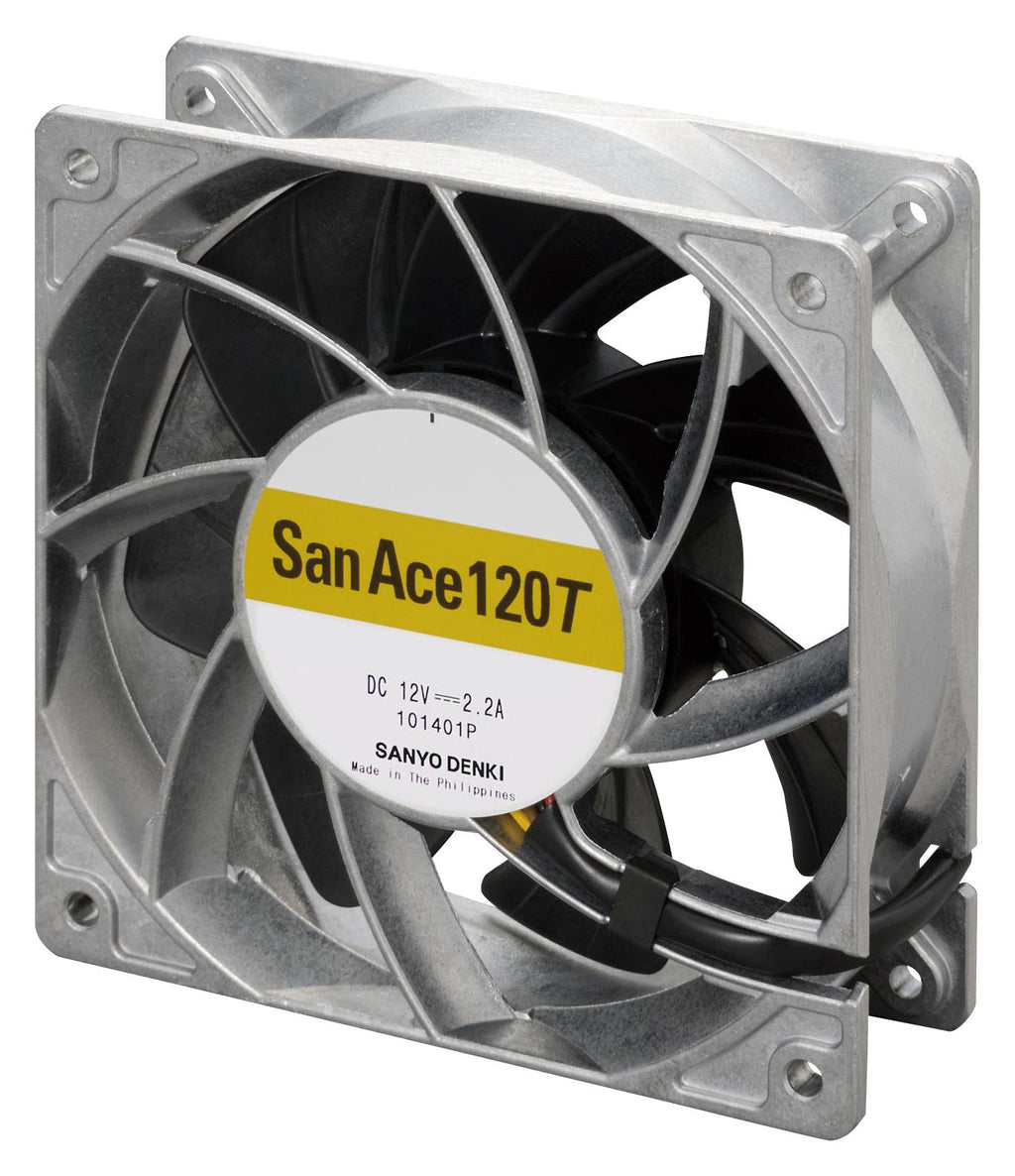

Product Overview
- Burnout protection function at locked rotor condition
- Reverse polarity protection function
- 10MΩ at 500VDC Insulation resistance
- UL94V-1 Flammability rated plastic impeller and aluminium frame
- Operating temperature range -40°C to 85°C
Applications
Cooling, High Temperature, LED Lighting, Electric Vehicle (EV) Charging, Alternative Energy
Product details
| Supply Voltage VDC |
24V |
| Fan Frame Size |
120mm |
| Bearing Type |
Ball Bearing |
| Noise Rating |
58dBA |
| Rated Speed |
5600rpm |
| Current Rating |
1.1A |
| Air Flow - m3/min |
6m³/min |
| SVHC |
Triphenyl Phosphate (25-Jun-2025) |
| Fan Frame Type |
Square |
| External Depth |
38mm |
| Air Flow - CFM |
211.8CFM |
| Power Rating |
26.4W |
| Power Connection Type |
4 Lead Wires, PWM Control, Sensor Output |
| IP Rating |
- |
| Product Range |
San Ace 120T |
Other details
| Brand |
SANYO DENKI |
| Part Number |
9GT1224P1S001 |
| Quantity |
Each |
| Technical Data Sheet (639.63KB) EN |
View or download |
