Description
Product Overview

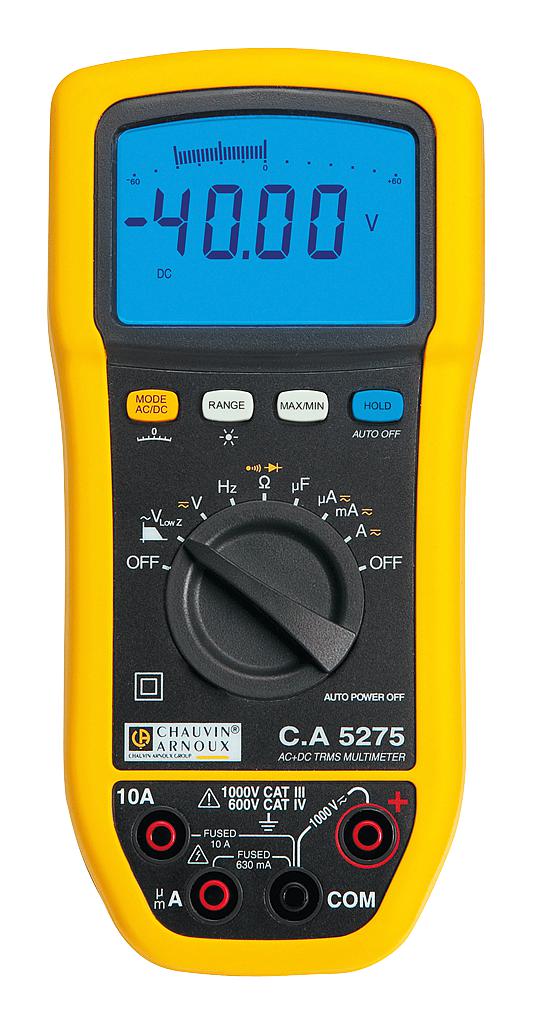

P01196775 is a C.A 5275 TRMS AC+DC multimeter. This instrument is ideal for tertiary, industrial, electrical or electrotechnical maintenance applications. It is equipped with all the classic functions offered by a general purpose multimeter and also includes advanced functions to facilitate measurements in the field of general electrical applications, electromechanics, heating and air-conditioning, industry & tertiary sector, automotive sector, buildings and all installations powered by an electrical network.
- Bi-mode double 6,000-count backlit display and 61+2-segment bargraph (full scale / central zero)
- Quick response of 5 measurements / second, autorange / deactivatable
- Measures AC and DC voltage of 60mV / 600mV / 6V / 60V / 600V / 1,000V
- Measures AC and DC current range of 6000µA / 60mA / 600mA/ 6A / 10A (20A / 30s)
- Capacitance range from 6nF / 60nF / 600nF / 6µF / 60µF / 600µF / 6mF / 60mF
- Measures resistance up to 60Mohm, frequency up to 50kHz, temperature range from -59.6 to +1,200°C
- Hold, min / MAX (100ms), automatic power-off
- CAT IV 600V and CAT III 1000V safety
- IP54 ingress protection rating
- Dimension is 90 x 190 x 45mm, powered by 1 x 9V power supply
Contents
Multimeter, Operating instructions on CD ROM in 5 languages, Quick start guide in 5 languages, Alkaline 6LF22 9 V battery, One 1.5m red straight/elbowed cable, One 1.5m black straight/elbowed cable, CATIV 1 kV red test probe, CATIV 1kV black test probe, Multi-fixture mounting accessory, Bag 120 x 200 x 60mm.
Notes
In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
Product details
| DMM Functions | AC/DC Current, AC/DC Voltage, Capacitance, Continuity, Diode, Frequency, Resistance |
| DMM Response Type | True RMS |
| Range Selection | Auto, Manual |
| Voltage Measure AC Max | 1kV |
| Current Measure AC Max | 10A |
| Manufacturer Warranty | 3 Years |
| SVHC | No SVHC (16-Jul-2019) |
| No. of Digits | 3.75 |
| Display Count | 6000 |
| Voltage Measure DC Max | 1kV |
| Current Measure DC Max | 10A |
| Resistance Measure Max | 60Mohm |
| Product Range | - |
Other details
| Brand | CHAUVIN ARNOUX |
| Part Number | P01196775 |
| Quantity | Each |
| Manufacturer Catalogue (63.00B) EN | View or download |
| User Manual (63.00B) EN | View or download |
| Technical Data Sheet (1.20MB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 67068.62 |
| 3-5 | ₹ 66384.25 |
| 5-10 | ₹ 65015.5 |
| 10+ | ₹ 63646.75 |
Bulk discount will be automatically applied during checkout based on quantity.
