Description
Product Overview

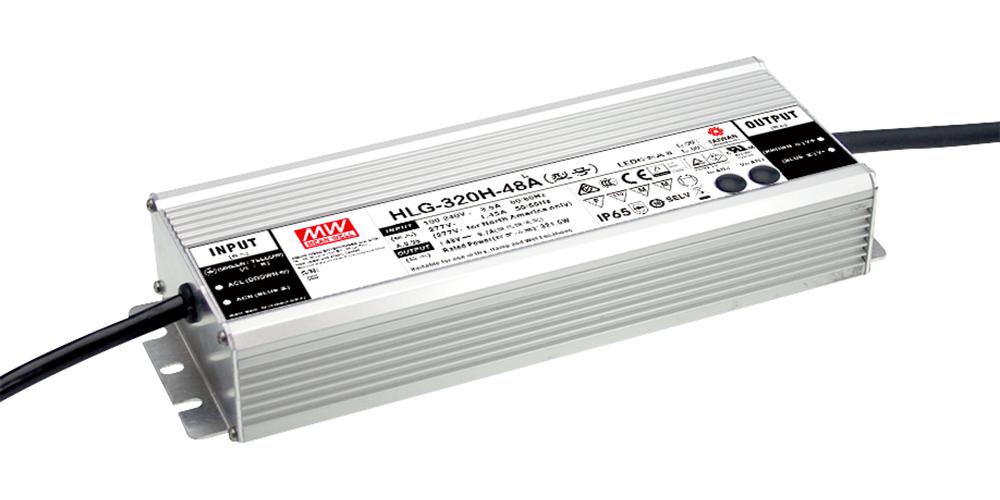

HLG-320H-48 is a HLG-320H series 321.6W AC/DC LED driver featuring the dual mode constant current and constant voltage output. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HLG-320H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
- 90 to 305VAC input voltage, 48V DC output voltage, 6.7A rated current
- Ripple and noise is 250mVpp
- Metal housing with class I design
- Built in active PFC function
- Operates for -40°C to +90°C case temperature under free air convection
- Output adjustable via potentiometer
- 3 in 1 dimming
- Lifetime<gt/> 62000hours
- 7 year warranty
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Power Supply Applications | - |
| Output Voltage Max | 48VDC |
| LED Driver Mode | Constant Current, Constant Voltage |
| Input Voltage Max | 305V |
| SVHC | No SVHC (04-Feb-2026) |
| Output Power Max | 321.6W |
| Output Current | 6.7A |
| Input Voltage Min | 90V |
| Product Range | HLG-320H |
Other details
| Brand | MEAN WELL |
| Part Number | HLG-320H-48 |
| Quantity | Each |
| Technical Data Sheet (255.72KB) EN | View or download |
