Product Overview

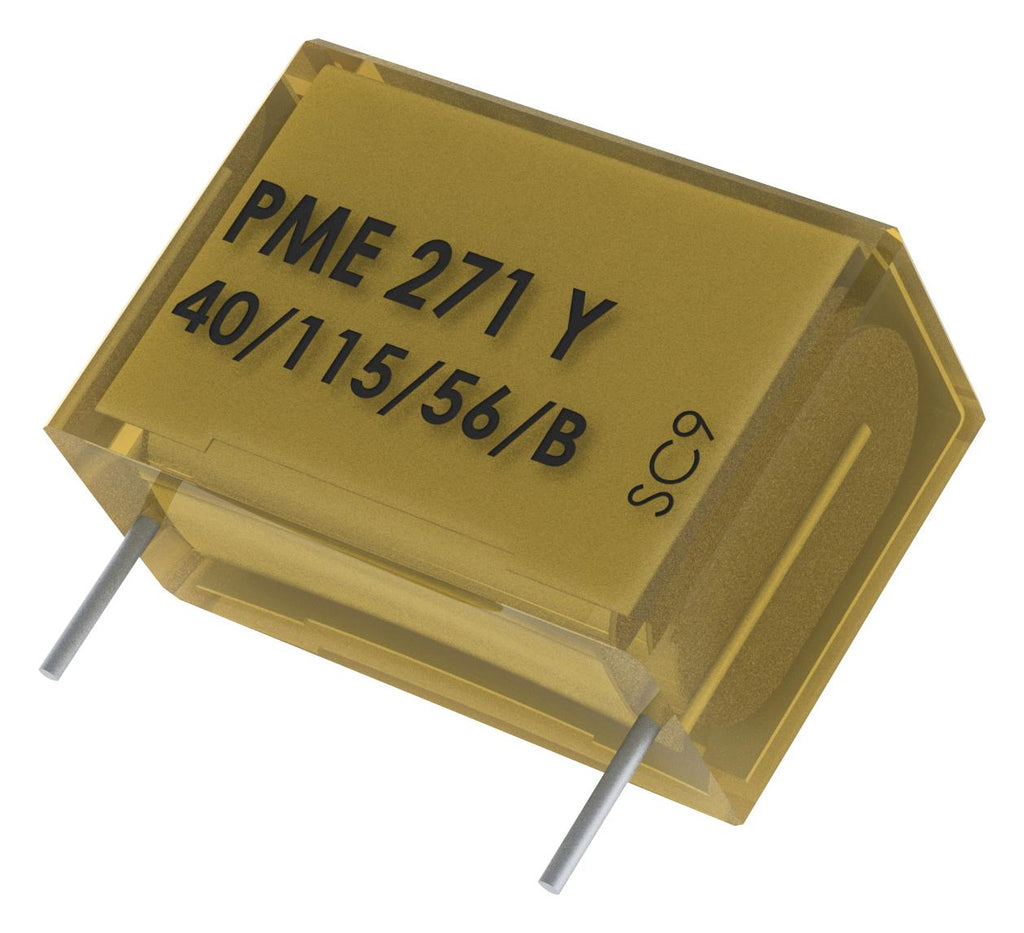

The PME271Y Series is constructed of multilayer metallized paper encapsulated and impregnated in self-extinguishing material meeting the requirements of UL 94 V–0.Typical applications include worldwide use as electromagnetic interference suppressor in all Y2 applications, line-to-earth.
- Approvals: ENEC, UL, cUL, CQC / Rated voltage: 250 VAC 50/60 Hz
- Capacitance range: 0.001 – 0.1 μF / Capacitance tolerance: ±20% / Lead spacing: 10.2 – 25.4 mm
- Climatic category: 40/100/56/B, IEC 60068–1
- Tape and reel packaging in accordance with IEC 60286–2
- RoHS Compliant and lead-free terminations
- 100% screening factory test at 3,000 VDC
- Highest possible safety regarding active and passive flammability
- Operating temperature range of -40˚C to +100˚C
Product details
| Dielectric Type |
Metallized Paper |
| Capacitance |
0.047µF |
| Suppression Class |
Y2 |
| Voltage Rating X |
- |
| dv/dt Rating |
1kV/µs |
| Lead Spacing |
20.3mm |
| Operating Temperature Max |
100°C |
| Qualification |
- |
| Capacitor Case / Package |
Radial Box - 2 Pin |
| Capacitance Tolerance |
± 20% |
| Capacitor Mounting |
Through Hole |
| Voltage Rating Y |
250VAC |
| Humidity Rating |
GRADE II (Test Condition A) |
| Operating Temperature Min |
-40°C |
| Product Range |
PME271Y/P271 Series |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
KEMET |
| Part Number |
PME271Y547MR19T0 |
| Quantity |
Each |
