Product Overview

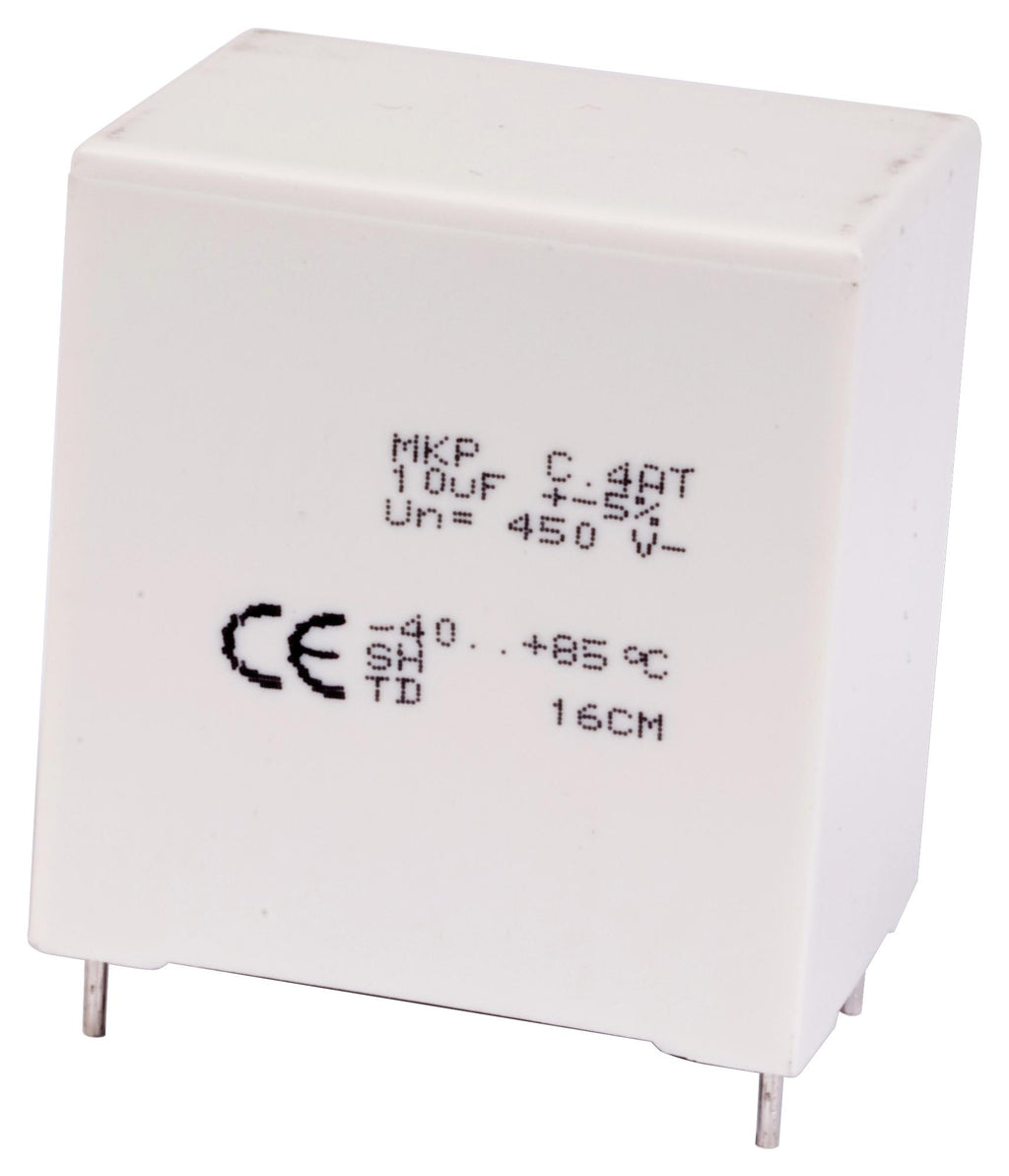

The C4AT Series is a polypropylene metallized film with rectangular plastic box type filled with resin and 2 or 4 tinned copper wires.Typical applications include switching.
- Self-healing
- Low losses
- High ripple current
- High contact reliability
- Suitable for high frequency applications
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
20µF |
| Typical Applications |
High Frequency |
| Voltage(AC) |
275V |
| Humidity Rating |
- |
| Lead Spacing |
52.5mm |
| Peak Current |
0 |
| ESR |
2200µohm |
| Product Length |
57.5mm |
| Product Height |
45mm |
| Output (kvar) |
- |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
| Capacitor Case / Package |
Radial Box - 4 Pin |
| Capacitance Tolerance |
± 5% |
| Capacitor Mounting |
Through Hole |
| Voltage(DC) |
450V |
| Capacitor Terminals |
PC Pin |
| dv/dt Rating |
37V/µs |
| RMS Current (Irms) |
29A |
| Product Diameter |
- |
| Product Width |
30mm |
| Ripple Current |
- |
| Product Range |
C4AT Series |
| Operating Temperature Max |
85°C |
| SVHC |
1,1'-(ethane-1,2-diyl)bis[pentabromobenzene] (DBDPE) (04-Feb-2026) |
Other details
| Brand |
KEMET |
| Part Number |
C4ATGBW5200A3MJ |
| Quantity |
Each |
| Product Change Notice (74.85KB) EN |
View or download |
