Product Overview
CHP series is a triple power thick film chip resistor. Thick film chip resistor is made of a thick film resistive layer printed onto a ceramic substrate. The thick film resistive layer is a mixture of metal oxides. Surface mount chip resistors have electroplated tin (Sn) outer terminations for board soldering. The resistive element is protected by an epoxy overcoat layer. Typical applications include power supplies, digital meters, consumer electronics, LED lighting and industry control boards.
- High power surge withstanding
- Operating temperature range from -55°C to +155°C
Product details
| Resistance |
1kohm |
| Power Rating |
3W |
| Resistor Technology |
Thick Film |
| Product Range |
CHP Series |
| Voltage Rating |
250V |
| Product Width |
3.1mm |
| Operating Temperature Max |
155°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Resistance Tolerance |
± 1% |
| Resistor Case / Package |
2512 [6432 Metric] |
| Resistor Type |
High Power |
| Temperature Coefficient |
± 100ppm/°C |
| Product Length |
6.4mm |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
Other details
| Brand |
BOURNS |
| Part Number |
CHP2512-FX-1001ELF |
| Quantity |
Each |
| Technical Data Sheet (1.11MB) EN |
View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.

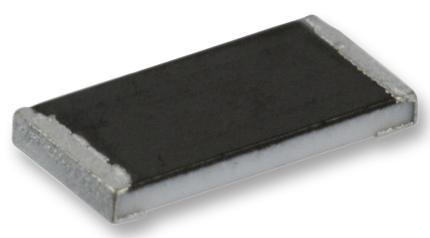

![BOURNS CHP2512-FX-1001ELF SMD Chip Resistor, 1 kohm, ± 1%, 3 W, 2512 [6432 Metric], Thick Film, High Power](http://www.tanotis.com/cdn/shop/files/2321755-40_{width}x.jpg?v=1791688656)
