Product Overview

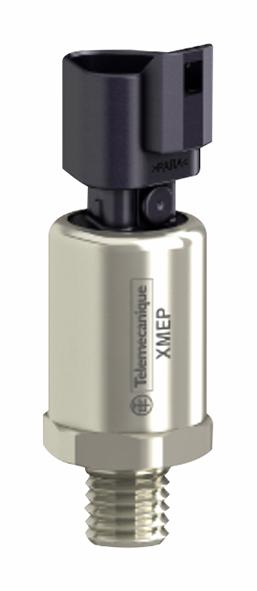

TELEMECANIQUE SENSORS XMEP7K5PT230 Pressure Transmitter, NPT Male, 0 psi, 7500 psi, 1/4"-18, Deutsch, 3 Pin
Product details
| Pressure Type |
- |
| Pressure Port Type |
NPT Male |
| Voltage Rating |
24VDC |
| Pressure Port Size |
1/4"-18 |
| Supply Current |
23mA |
| Supply Voltage Min |
9VDC |
| Media Type |
Air, Fresh Water, Hydraulic Oil |
| Sensor Output Type |
Analogue |
| Operating Temperature Min |
-40°C |
| Product Range |
OsiSense XM Series |
| Operating Pressure Min |
0psi |
| Operating Pressure Max |
7500psi |
| Port Style |
1/4" - 18 NPT |
| Transducer Connection / Termination |
Deutsch, 3 Pin |
| Supply Voltage Max |
36VDC |
| Output Interface |
- |
| Housing Material |
316L Stainless Steel |
| Operating Temperature Max |
100°C |
| SVHC |
To Be Advised |
