Product Overview

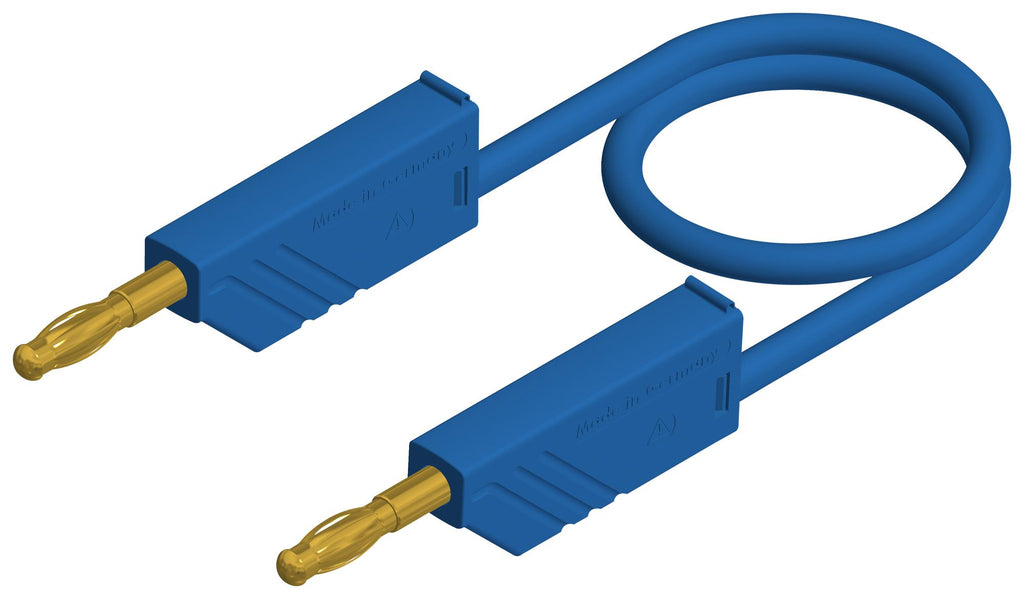

Measuring lead, at either end 4 mm diameter plug with caged spring and 4 mm diameter socket for tower construction. Gold-plated copper beryllium contact spring. Highly flexible, double insulated stranded lead, grip and lead shatter-proof. Built in colour indicator for easy identification of insulation damages.
- 4 mm system
- Measuring leads
- 30 VAC / 60 VDC rated voltage (1)
- O (3) measurement cat. acc. to IEC 61010
- 32 A rated current (1)
- PA housing material
- (1) for normal environmental conditions -5°C to +40°C
- (3) without rated measurement category, for other circuits that are not directly connected to mains
Product details
| Test Connector Type A |
4mm Stackable Banana Plug |
| Lead Length - Imperial |
5ft |
| Insulator Colour |
Blue |
| Voltage Rating |
60VDC |
| SVHC |
No SVHC (15-Jan-2018) |
| Test Connector Type B |
4mm Stackable Banana Plug |
| Lead Length - Metric |
1.5m |
| Current Rating |
32A |
| Product Range |
MLN 150/2,5 Au Series |
Other details
| Brand |
HIRSCHMANN TEST AND MEASUREMENT |
| Part Number |
934507702 |
| Quantity |
Each |
| Technical Data Sheet (314.62KB) EN |
View or download |
| Declaration of Conformity (1.61MB) EN |
View or download |
