Product Overview

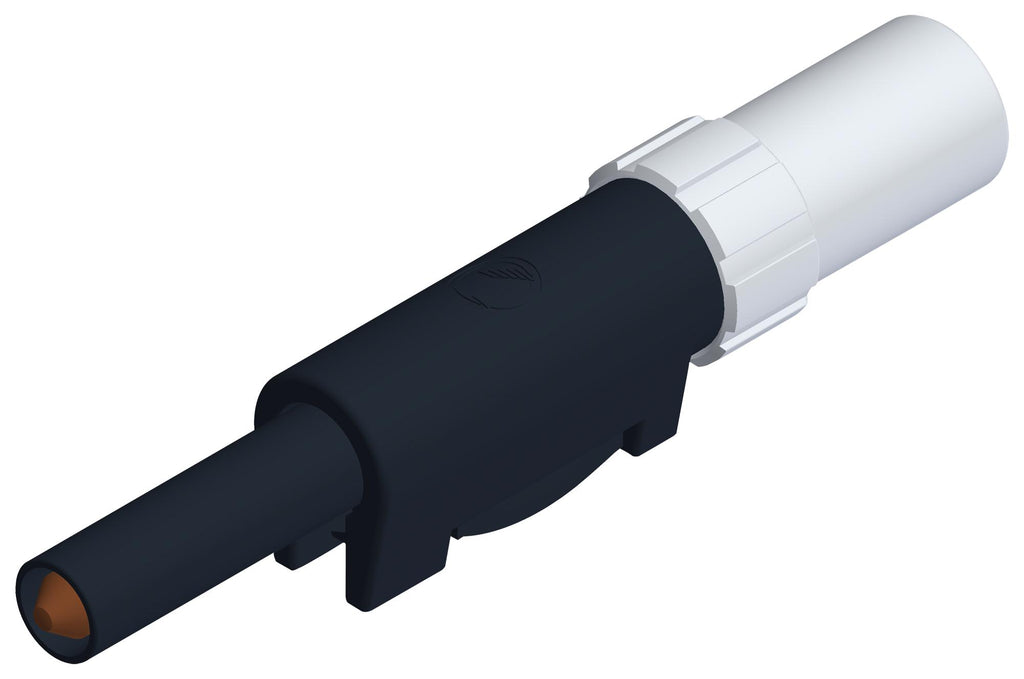

Touch protected plug to assemble with screw connection for cables up to 1.5mm². Insulated by latching and sprung insulating sleeve, to be released by pressure on the lateral locking spring. plug with contact spring, 4mm diameter. *Apply to this typ 150 VDC, CAT II; according IEC / EN 61010-031 item 6.4.2; allowed for devices that are equipped with terminals which cannot accept fully shrouded connectors.
- 4 mm sliding sleeve system
- Plugs
- Screw terminal connection
- 30 VAC / 60 VDC rated voltage (1)
- O (3) measurement cat. acc. to IEC 61010
- 16 A rated current (1)
- POM housing material
- (1) for normal environmental conditions -5°C to +40°C
- (3) without rated measurement category, for other circuits that are not directly connected to mains
Product details
| Gender |
Plug |
| Current Rating |
16A |
| Contact Plating |
Nickel Plated Contacts |
| Contact Material |
Brass |
| Product Range |
SLS 20 B Series |
| Connector Mounting |
Cable Mount |
| Voltage Rating |
60VDC |
| Connector Colour |
White |
| Contact Termination Type |
Screw |
| SVHC |
No SVHC (15-Jan-2018) |
Other details
| Brand |
HIRSCHMANN TEST AND MEASUREMENT |
| Part Number |
931825107 |
| Quantity |
Each |
| Declaration of Conformity (1.61MB) EN |
View or download |
| Technical Data Sheet (274.65KB) EN |
View or download |
