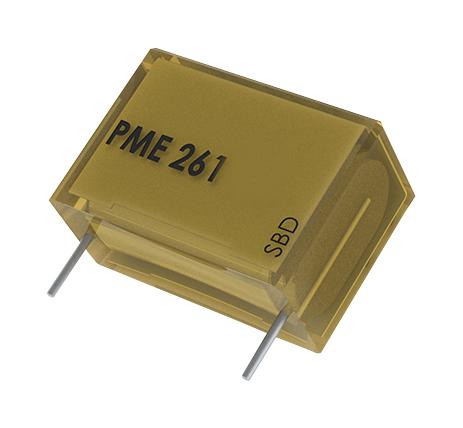

Product Overview
The PME261 Series is constructed of multilayer metallized paper, encapsulated and impregnated in self-extinguishing material meeting the requirements of UL 94 V–0. For general use in DC and low frequency pulse applications.
- Voltage range: 400 – 1,000 VDC; 220 – 500 VAC
- Capacitance range: 0.001 – 1 µF
- Climatic category: 40/70/56, IEC 60068–1
- Operating temperature range of -40˚C to +70˚C in AC applications
Product details
| Dielectric Type |
Metallized Paper |
| Capacitance |
0.01µF |
| Voltage(AC) |
300V |
| Capacitor Mounting |
Through Hole |
| Humidity Rating |
GRADE II (Test Condition A) |
| Product Length |
13.5mm |
| Product Height |
10.5mm |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
| Capacitor Case / Package |
Radial Box - 2 Pin |
| Capacitance Tolerance |
± 10% |
| Voltage(DC) |
630V |
| Capacitor Terminals |
Radial Leaded |
| Lead Spacing |
10.2mm |
| Product Width |
5.1mm |
| Product Range |
PME261/P561 Series |
| Operating Temperature Max |
100°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
KEMET |
| Part Number |
PME261EA5100KR19T0 |
| Quantity |
Each |
