| ₹ 192.01 includes GST and import duties. | |
| B2B customers can avail ₹ 29.28 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview
The BT136-600D,127 is a planar passivated very sensitive gate Four-quadrant Triac intended for use in general purpose bidirectional switching and phase control applications, where high sensitivity is required in all four quadrants. This very sensitive gate "series D" triac is intended to be interfaced directly to microcontrollers, logic integrated circuits and other low power gate trigger circuits.
- Direct triggering from low power drivers and logic ICs
- High blocking voltage capability
- Low holding current for low current loads and lowest EMI at commutation
- Planar passivated for voltage ruggedness and reliability
- Triggering in all four quadrants
- Very sensitive gate
- 2A Peak gate current
- 0.5W Average gate power
Applications
Motor Drive & Control, Industrial
Product details
| Peak Repetitive Off State Voltage | 600V |

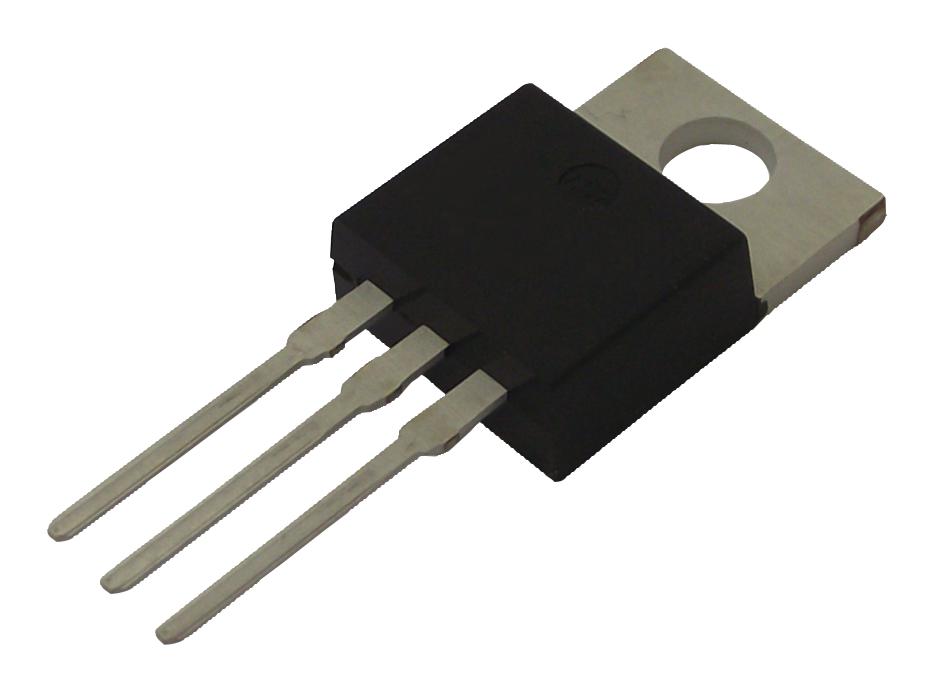

| Triac Case Style | TO-220AB |
| Peak Non Repetitive Surge Current | 27A |
| No. of Pins | 3Pins |
| Peak On State Voltage | 1.7V |
| Product Range | BT136 |
| SVHC | No SVHC (27-Jun-2024) |
| On State RMS Current | 4A |
| Gate Trigger Voltage Max | 1V |
| Holding Current Max | 10mA |
| Operating Temperature Max | 125°C |
| Thyristor Mounting | Through Hole |
| MSL | - |
Other details
| Brand | WEEN SEMICONDUCTORS |
| Part Number | BT136-600D,127 |
| Quantity | Each |
| Technical Data Sheet (262.08KB) EN | View or download |
| Product Change Notice (268.11KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 188.17 |
| 3-5 | ₹ 186.25 |
| 5-10 | ₹ 182.41 |
| 10+ | ₹ 178.57 |
Bulk discount will be automatically applied during checkout based on quantity.
