Product Overview

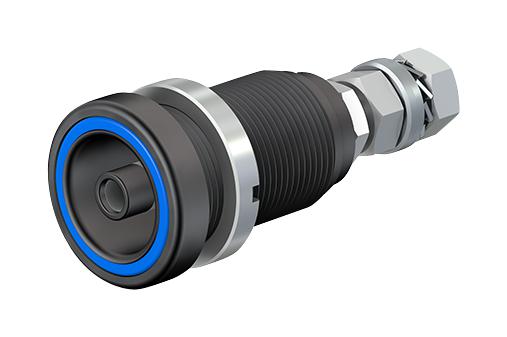

14.0034-23 is an insulated panel receptacle with Ø 6mm pin. It is made of silver-plated brass, accepting Ø 6mm sockets with spring-loaded Multilam™ and rigid insulating sleeve. With the integrated Ø 4mm socket, the receptacle mates alternatively with spring-loaded Ø 4mm plugs with rigid insulating sleeve. The receptacle has black housing and is fitted with a coloured ring on the front side. In combination with the test leads SLK6-AR/B, a locked connection can be made. The receptacle is screwed into predrilled panels of plastic, metal etc.
- 600V, CAT III / 80A rated
- M6 threaded bolt connection
- Blue colour ring
Product details
| Gender |
Jack |
| Current Rating |
80A |
| Contact Plating |
Silver Plated Contacts |
| Contact Material |
Brass |
| Product Range |
ID/S6AR-N-B4S Series |
| Connector Mounting |
Panel Mount |
| Voltage Rating |
600V |
| Connector Colour |
Blue |
| Contact Termination Type |
Screw |
| SVHC |
No SVHC (16-Jan-2020) |
Other details
| Brand |
STAUBLI |
| Part Number |
14.0034-23 |
| Quantity |
Each |
| Technical Data Sheet (311.44KB) EN |
View or download |
