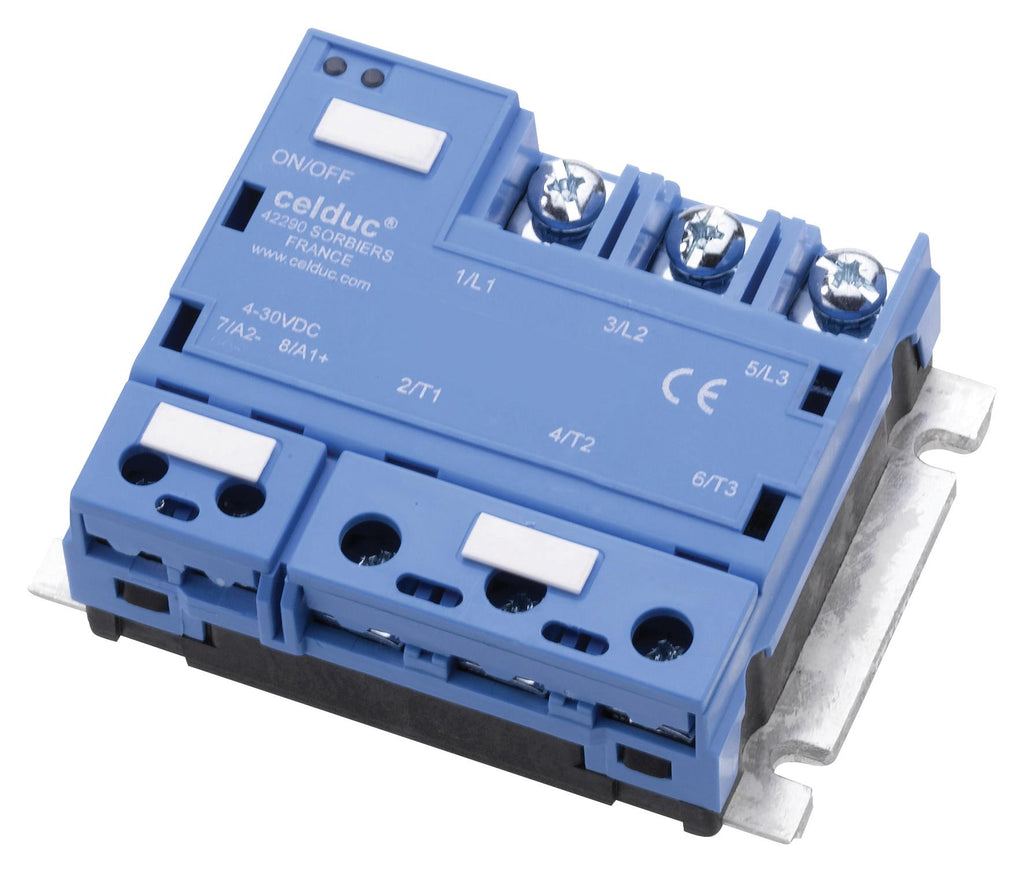

Product Overview
- Zero Cross Solid State Relay specially designed for most types of loads
- Over-Voltage protection on input (transil) and output (RC+VDR)
- Back to back thyristors on output with TMS² technology for a long lifetime expectancy, RoHS void free process
- Direct copper bonding (DCB) technology
- arge control range: 4-30VDC with input current limiter. Green LED visualization on the input
- Designed in conformity with IEC/ EN60947-4-3 and IEC/ EN60947-4-2
- Built in IP20 - protection with flaps
Product details
| Contact Configuration |
- |
| Operating Voltage Max |
520VAC |
| Relay Terminals |
Screw |
| Operating Voltage Min |
24VAC |
| Control Voltage Max |
30VDC |
| Load Current |
64A |
| Relay Mounting |
Panel Mount |
| Switching Mode |
Zero Crossing |
| Control Voltage Min |
4VDC |
| Product Range |
cel3pac SGT Series |
Other details
| Brand |
CELDUC |
| Part Number |
SGT8690500 |
| Quantity |
Each |
| Technical Data Sheet (700.86KB) EN |
View or download |
