Product Overview

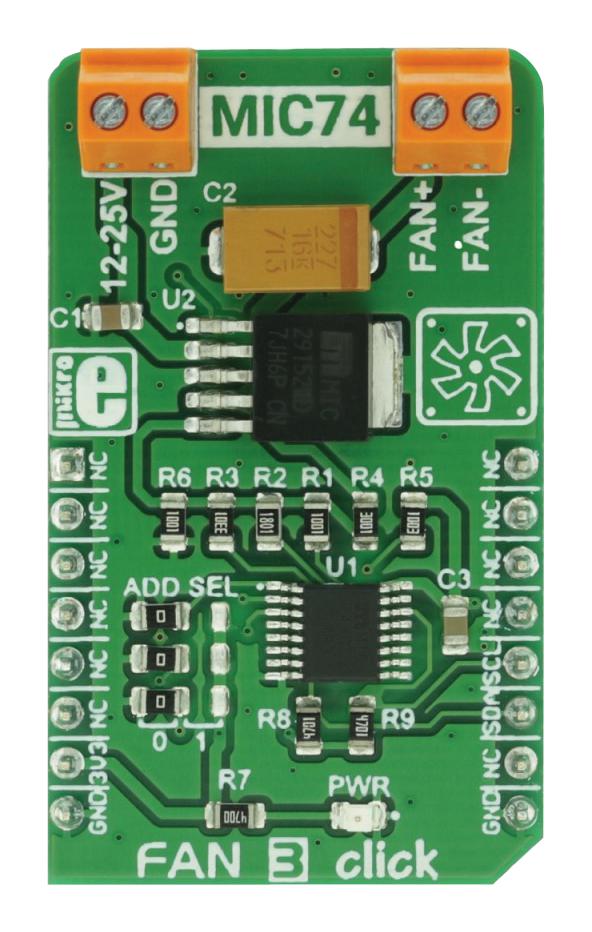

Fan 3 click board™ is the perfect choice for fan speed control and it can operate in seven discrete speed steps. Unlike the PWM regulation which can sometimes cause the infamous coil whining effect on some types of fans this click board outputs the selected voltage via the MIC29152 voltage regulator driven through the MIC74 a serial to parallel I/O expander and a fan controller from the same company keeping it constant at the output. It works with 12V to 25V on its input connector and can be used whenever a noiseless solution with a variable fan speed is needed for example cooling of electronic components with the minimal possible noise produced.
- Over-current protection
- I2C communication interface
- Several selectable I2C addresses
- I2C interface
- 3.3V input voltage
Product details
| Accessory Type |
Fan 3 Click Board |
| Product Range |
- |
| For Use With |
mikroLab/EasyStart/mikromedia Starter Development Kits |
| SVHC |
No SVHC (14-Jun-2023) |
Other details
| Brand |
MIKROELEKTRONIKA |
| Part Number |
MIKROE-2841 |
| Quantity |
Each |
| Technical Data Sheet (258.92KB) EN |
View or download |
