Description
Product Overview

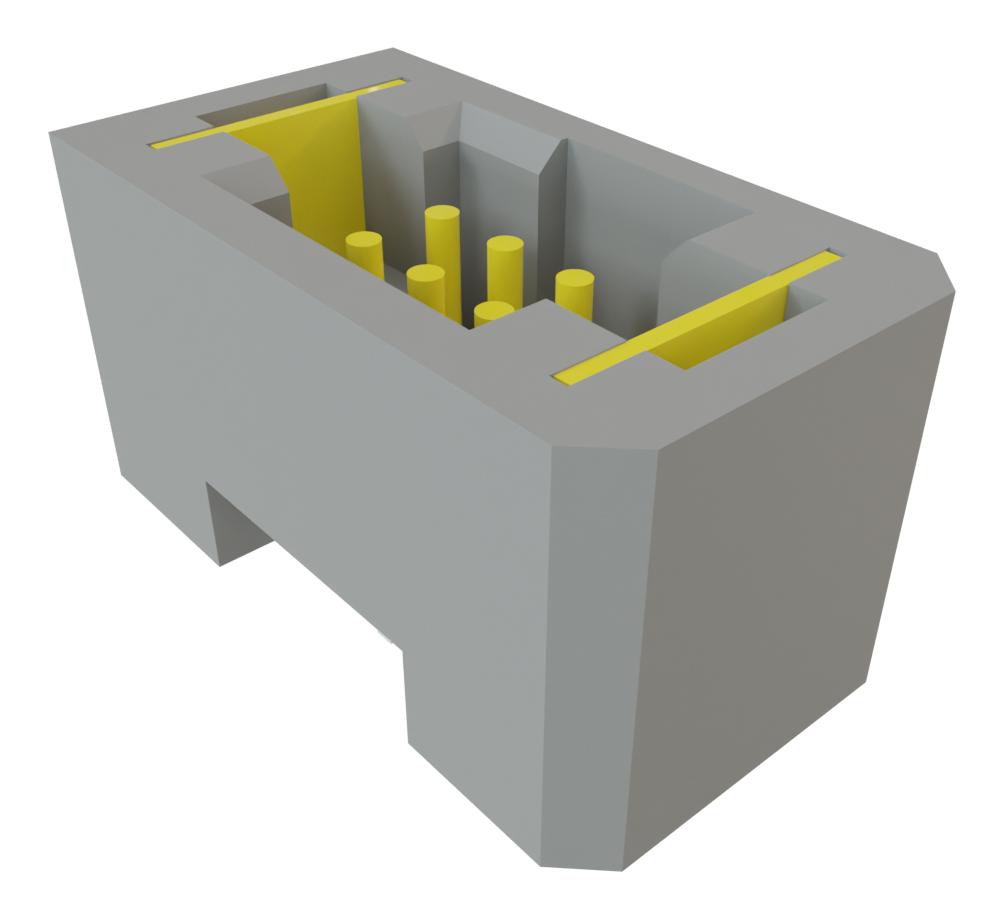

The TFM series rugged Tiger Eye™ Terminal Strip features a multi-finger, BeCu contact system designed for high reliability and high cycle applications with surface mount or through-hole tails. Vertical or right-angle orientations for parallel, perpendicular and coplanar mating increase design flexibility, along with optional alignment pin, locking clip, dual screw down or weld tab for more rugged applications.
- Shrouded body for blind mating
- Orientation - Vertical, right-angle and horizontal
- Termination - Through-hole and surface mount
- Mating with high-reliability Tiger Eye™ contact sockets and cable assemblies
- Multiple stack heights
- Screw down, weld tab and solder nail options available for most rugged requirements
- Extended Life Product™ (ELP™)
Applications
Industrial
Product details
| Connector Systems | Board-to-Board, Wire-to-Board |
| No. of Rows | 2Rows |
| Contact Termination Type | Through Hole |
| Connector Shroud | Shrouded |
| Contact Plating | Gold Plated Contacts |
| SVHC | No SVHC (04-Feb-2026) |
| Pitch Spacing | 1.27mm |
| No. of Contacts | 30Contacts |
| Product Range | Tiger Eye TFM |
| Contact Material | Phosphor Bronze |
| Connector Type | PCB Header |
Other details
| Brand | SAMTEC |
| Part Number | TFM-115-01-L-D-WT |
| Quantity | Each |
| Enhanced Product Overview (53.00B) EN | View or download |
| Manufacturer Catalogue (17.23MB) EN | View or download |
| Technical Data Sheet (54.00B) EN | View or download |
| Drawing (70.00B) EN | View or download |
