Product Overview

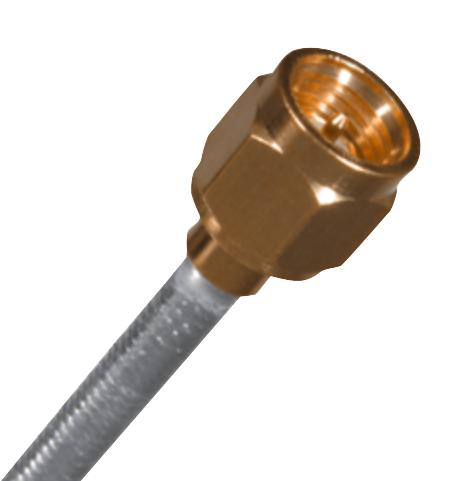

The 415-0082-MM200 from Johnson - Cinch Connectivity is a SMA straight hand formable plug to SMA straight hand formable plug RF cable assembly. This SMA cable assembly is made with SMA connectors on both ends. SMA connectors are semi-precision, sub-miniature, high frequency connectors that offer reliable broadband performance. SMA connectors feature a thread-on interface that offers high mechanical strength, high durability and low VSWR.
- Standard cable length is 7.87" and metric cable length is 200mm
- Cable type is 0.141 conformable
- Impedance is 50 ohm and frequency is 26.5GHz
- Dielectric withstanding voltage is 1500VRMS and working voltage is 500VRMS
Product details
| Connector to Connector |
SMA Plug to SMA Plug |
| Cable Length - Metric |
200mm |
| Connector Type A |
SMA Straight Plug |
| Impedance |
50ohm |
| Product Range |
- |
| Cable Length - Imperial |
7.87" |
| Coaxial Cable Type |
0.141 Hand Formable |
| Connector Type B |
SMA Straight Plug |
| Jacket Colour |
Grey |
Other details
| Brand |
JOHNSON - CINCH CONNECTIVITY |
| Part Number |
415-0082-MM200 |
| Quantity |
Each |
| Technical Data Sheet (2.35MB) EN |
View or download |
| Manufacturer Catalogue (665.97KB) EN |
View or download |
