Product Overview

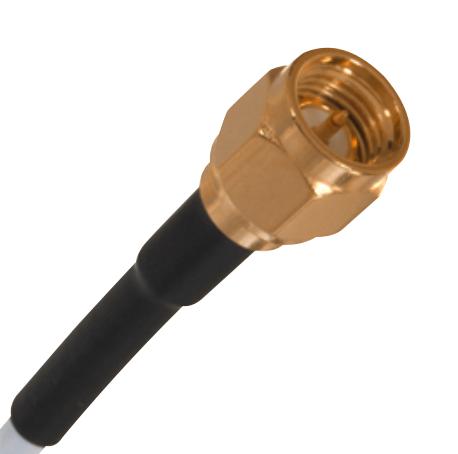

The 415-0027-M1.5 from Johnson - Cinch Connectivity is a SMA right angle plug to SMA right angle plug RF cable assembly. This SMA cable assembly is made with SMA connectors on both ends. SMA connectors are semi-precision, sub-miniature, high frequency connectors that offer reliable broadband performance. SMA connectors feature a thread-on interface that offers high mechanical strength, high durability and low VSWR.
- Standard cable length is 59.1" and metric cable length is 1500mm
- Cable type is RG-178
- Impedance is 50 ohm and frequency is 12.4GHz
- Dielectric withstanding voltage is 500VRMS and working voltage is 170VRMS
Product details
| Connector to Connector |
90° SMA Plug to 90° SMA Plug |
| Cable Length - Metric |
1.5m |
| Connector Type A |
SMA Right Angle Plug |
| Impedance |
50ohm |
| Product Range |
- |
| Cable Length - Imperial |
5ft |
| Coaxial Cable Type |
RG178 |
| Connector Type B |
SMA Right Angle Plug |
| Jacket Colour |
White |
Other details
| Brand |
JOHNSON - CINCH CONNECTIVITY |
| Part Number |
415-0027-M1.5 |
| Quantity |
Each |
| Technical Data Sheet (2.35MB) EN |
View or download |
