Product Overview

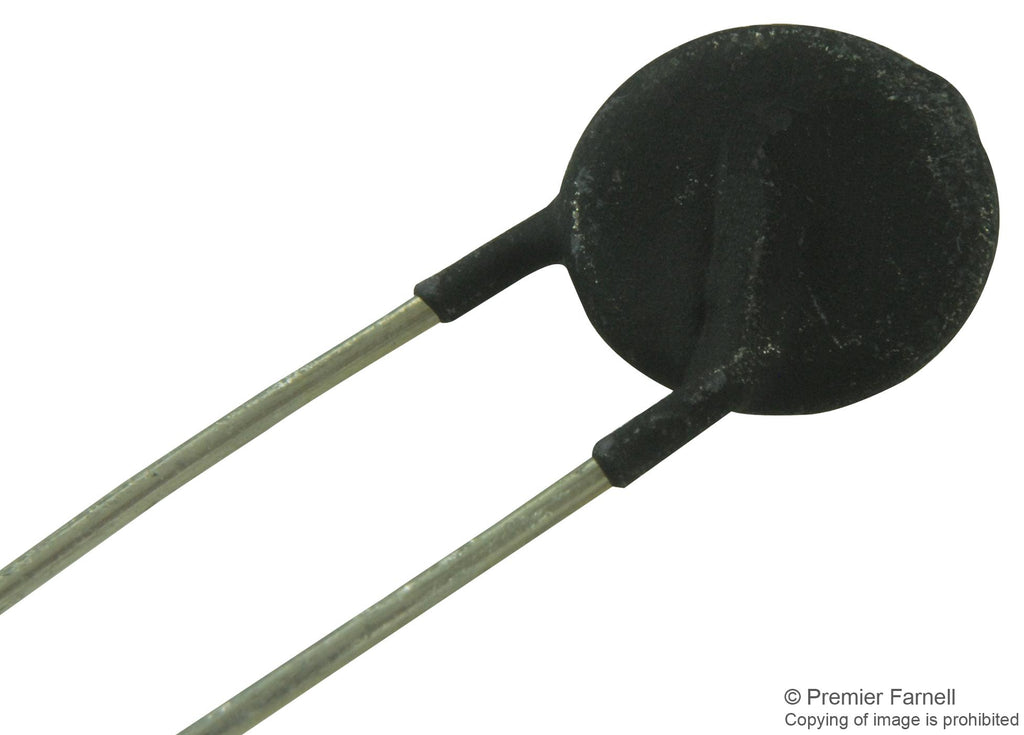

CL-40 is a CL series NTC inrush current limiter designed to control inrush current in switching power supplies, fluorescent lamps, inverters, and motors.
- Resistance at 25°C is 5ohm with ±25% tolerance
- Small physical size offers design-in benefits over larger passive components
- Low cost, solid state device for inrush current suppression
- Low steady resistance and accompanying power loss
- Excellent mechanical strength
- Wide operating temperature range from -58°F to 347°F (-50°C to 175°C)
- Suitable for PCB mounting
Product details
| Product Range |
Inrush Current Limiter |
| Resistance (25°C) |
5ohm |
| Maximum Energy Rating at 25°C |
37.44J |
| Disc Size |
19.56mm |
| Approvals |
UL |
| Maximum Steady State Current at 25°C |
6A |
Other details
| Brand |
AMPHENOL ADVANCED SENSORS |
| Part Number |
CL-40 |
| Quantity |
Each |
| Application Note (125.23KB) EN |
View or download |
| Technical Data Sheet (291.10KB) EN |
View or download |
