Description
Product Overview

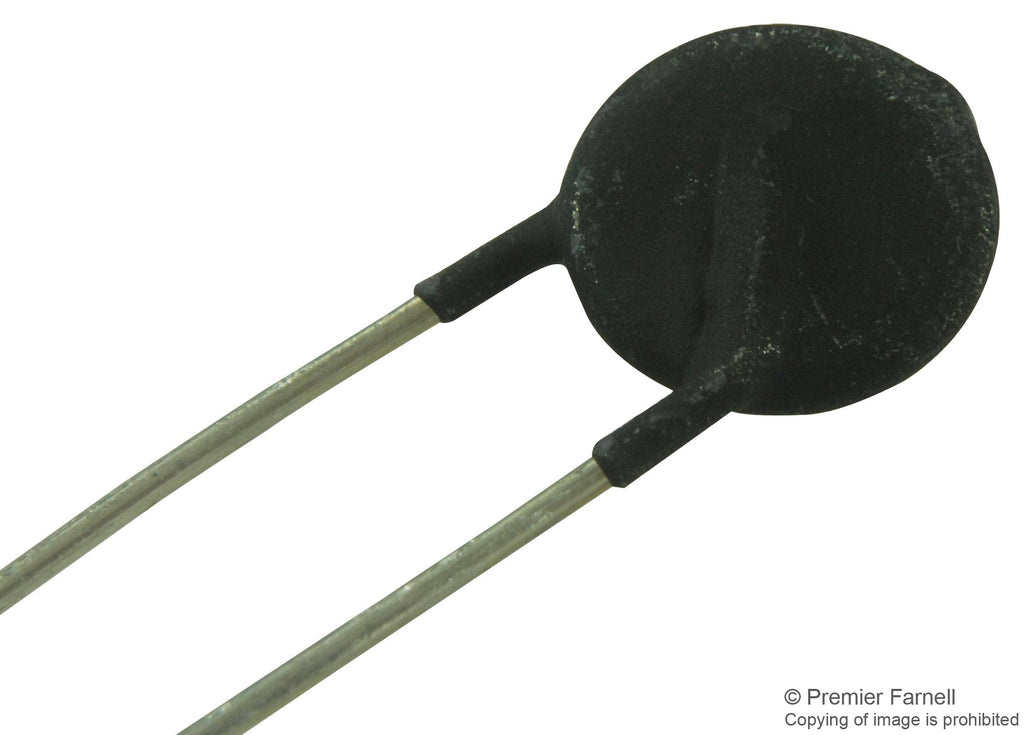

The CL-90 is a 2-pin NTC Inrush Current Limiter features small physical size offers design-in benefits over larger passive components and solid state device for inrush current suppression. The disc thermistor with uninsulated lead wires. The problem of current surges in switch-mode power supplies is caused by the large filter capacitors used to smooth the ripple in the rectified 60Hz current prior to being chopped at a high frequency. The maximum surge current, the main purpose of limiting inrush current is to prevent components in series with the input to the DC/DC convertor from being damaged. The maximum steady-state current rating of a thermistor is mainly determined by the acceptable life of the final products for which the thermistor becomes a component. Suitable for PCB mounting.
- Low steady resistance and accompanying power loss
- Best-in-class capacitance ratings
- Excellent mechanical strength
- Energy surge at turn-on
- -50 to 175°C Wide operating temperature range
Applications
Consumer Electronics, Power Management, Lighting, Motor Drive & Control
Product details
| Product Range | Inrush Current Limiter |
| Resistance (25°C) | 120ohm |
| Maximum Energy Rating at 25°C | 36J |
| Disc Size | 23.62mm |
| Approvals | UL |
| Maximum Steady State Current at 25°C | 2A |
Other details
| Brand | AMPHENOL ADVANCED SENSORS |
| Part Number | CL-90 |
| Quantity | Each |
| Technical Data Sheet (291.10KB) EN | View or download |
| Application Note (125.23KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
