Product Overview

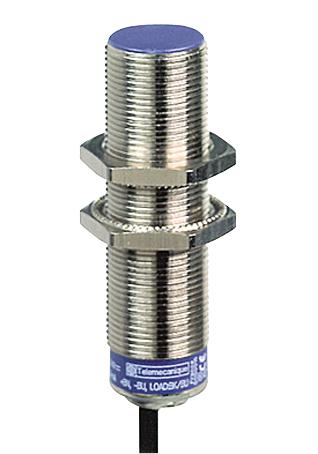

TELEMECANIQUE SENSORS XS118B3PCL2 Inductive Proximity Sensor, Cylindrical, OsiSense XS, M18, 5 mm, PNP-NO/NC, 12 to 24 Vdc, Pre-wired
Product details
| Sensor Type |
Inductive Proximity Sensor |
| Operating Temperature Max |
70°C |
| Sensing Distance Min |
- |
| Sensor Output Type |
4-Wire, PNP, NO / NC |
| Supply Voltage DC Min |
12V |
| Supply Voltage DC Max |
24V |
| Sensor Terminals |
Cable |
| IP Rating |
IP65, IP68 |
| Product Range |
XS Series |
| Sensing Range Max |
8mm |
| Thread Size - Metric |
M18 x 1 |
| Sensing Distance Max |
- |
| Sensing Distance Nom |
8mm |
| Supply Voltage Min |
12VDC |
| Supply Voltage Max |
24VDC |
| Sensor Case / Package |
Cylindrical M18 Thread |
| Sensor Body Material |
Brass |
| Operating Temperature Min |
-25°C |
| SVHC |
To Be Advised |
