Product Overview

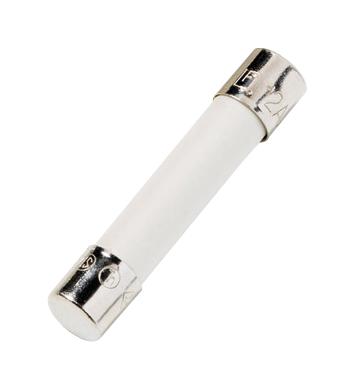

021506.3MXP is a 215 series time-lag fuse. It is a surge-withstand, ceramic-body cartridge fuse that is designed to IEC specifications. It is used as supplementary protection in an appliance or utilization equipment to provide individual protection for components or internal circuits.
- Conforms to EN/IEC/K/J 60127-1 and EN/IEC/K/J60127-2
- High breaking capacity
- Meets standard sheet 5 of IEC 60127-2 as a time-lag fuse
- Recognized to UL/CSA/NMX 248-1 and UL/CSA/NMX 248-14
- Conforms to GB 9364.1 and GB 9364.2
- Ceramic body, nickel–plated brass cap, tin–plated copper lead
- Operating temperature range from -55 to 125°C
- 250V AC voltage rating
- 1.5kA breaking capacity current AC
- 6.3A fuse current
Product details
| Blow Characteristic |
Time Delay |
| Voltage Rating VAC |
250V |
| Fuse Size Imperial |
0.2" x 0.79" |
| Breaking Capacity Current AC |
1.5kA |
| Fuse Current |
6.3A |
| Fuse Size Metric |
5mm x 20mm |
| Product Range |
215 |
| SVHC |
To Be Advised |
