Product Overview

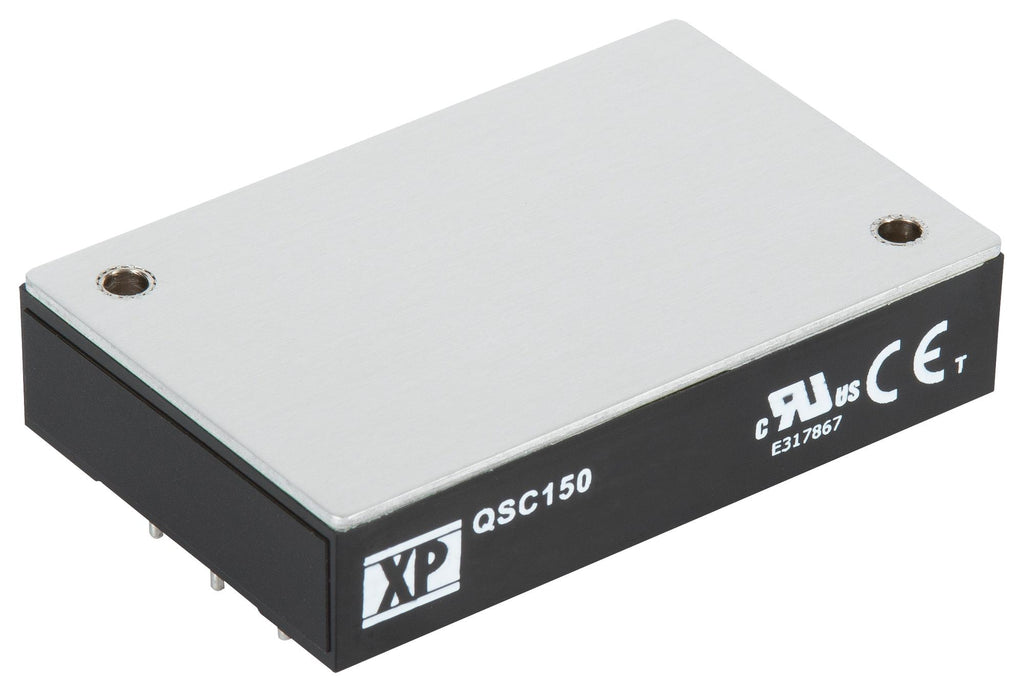

QSC150 series is a 4:1 quarter brick DC-DC converter for railway and industrial electronics applications. Utilizing the integral baseplate for conduction cooling gives the designer flexibility in system design. Complies with railway standards EN50155 and EN45545-2. In addition to railway applications the QSC150 is highly suited to telecommunications, distributed power architectures, battery operated equipment, industrial electronics, mobile equipment and many other applications. Safety approvals are cUL60950-1, UL62368-1, EN55015, EN45545-2.
- Baseplate cooled, regulated single outputs
- Output trim ±10%, remote on/off
- Short circuit, overvoltage and overtemperature protection
- 3 year warranty, dimension is 57.9 x 36.8 x 12.7mm
- Efficiency is 91%, maximum capacitive load is 6300μF
- Input voltage is 24V
- Output voltage is 24V, output current is 6.3A
- Input current is 18.3A full load, ripple and noise pk-pk is 280mV
- Plastic DAP UL94V-0 rated, base aluminium case material
- Operating base plate temperature is -40°C to 105°C
Product details
| Power Supply Applications |
ITE |
| Input Ratio |
4:1 |
| No. of Outputs |
1 Output |
| Output Current - Output 1 |
6.3A |
| Output Current - Output 2 |
- |
| Isolation Voltage |
2.25kV |
| DC / DC Converter Output Type |
Fixed, Adjustable |
| Height |
12.7mm |
| Input Voltage DC Min |
9V |
| Product Range |
QSC150 Series |
| DC / DC Converter Type |
Quarter Brick |
| Output Power Max |
150W |
| Output Voltage - Output 1 |
24V |
| Output Voltage - Output 2 |
- |
| Output Regulation |
Regulated |
| Input Voltage DC Nom |
24V |
| Width |
36.8mm |
| Depth |
57.9mm |
| Input Voltage DC Max |
36V |
Other details
| Brand |
XP POWER |
| Part Number |
QSC15024S24 |
| Quantity |
Each |
| Technical Data Sheet (818.47KB) EN |
View or download |
| Certificate of Conformity (486.38KB) EN |
View or download |
