Product Overview

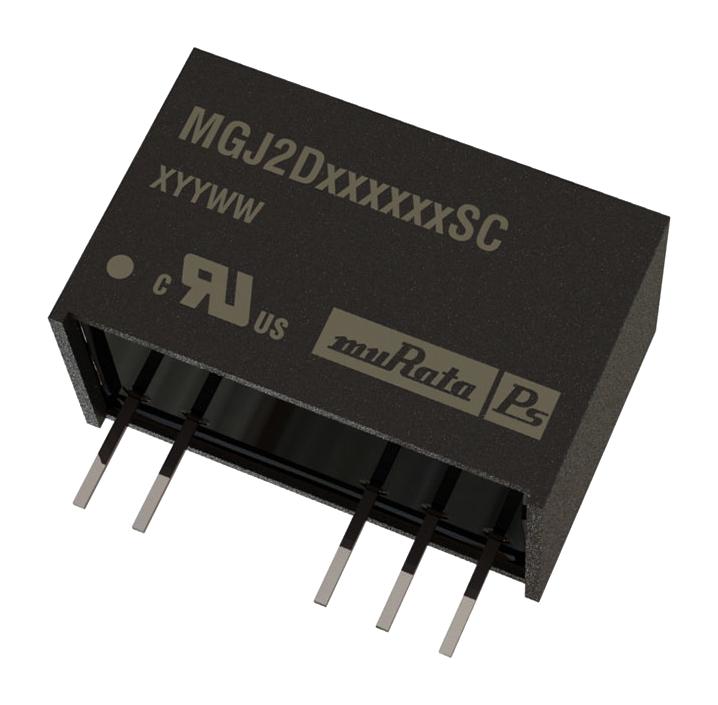

MURATA POWER SOLUTIONS MGJ2D152003SC Isolated Surface Mount DC/DC Converter, Gate Drive, DIP, 1:1, 2 W, 2 Output, 20 V
Product details
| Power Supply Applications |
Gate Drive |
| Input Ratio |
1:1 |
| No. of Outputs |
2 Output |
| Output Current - Output 1 |
80mA |
| Output Current - Output 2 |
80mA |
| Isolation Voltage |
5.2kV |
| DC / DC Converter Output Type |
Fixed |
| Height |
12.65mm |
| Input Voltage DC Min |
13.5V |
| Product Range |
MGJ2 Series |
| DC / DC Converter Type |
DIP |
| Output Power Max |
2W |
| Output Voltage - Output 1 |
20V |
| Output Voltage - Output 2 |
-3.5V |
| Output Regulation |
Unregulated |
| Input Voltage DC Nom |
15V |
| Width |
10.05mm |
| Depth |
19.65mm |
| Input Voltage DC Max |
16.5V |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
MURATA POWER SOLUTIONS |
| Part Number |
MGJ2D152003SC |
| Quantity |
Each |
| Technical Data Sheet (320.38KB) EN |
View or download |
| EOL Notices (132.35KB) EN |
View or download |
