Product Overview

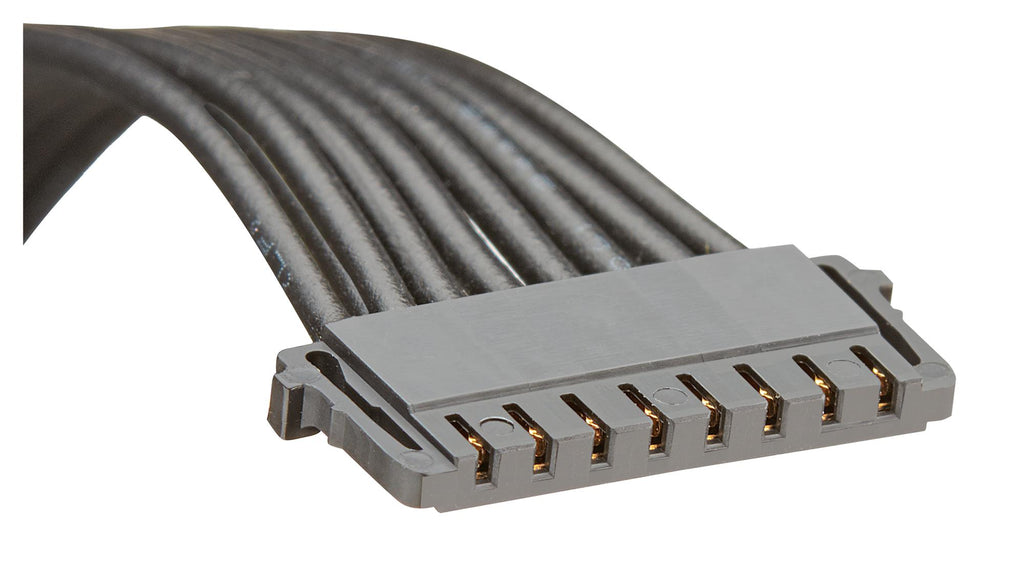

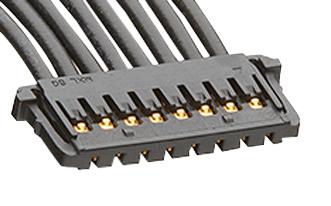

The 15132-1001 from Molex is a 15132 series Pico-Lock-to-Pico-Lock Off-the-Shelf (OTS) cable assembly. It is a single row, female to female cable assembly with 10 circuits. Pico-Lock cable assembly offers a low profile, high current and positive locks. Ideal for applications requiring space savings and secure mating retention.
- Cable length is 100mm, black colour resin
- Metal material is copper alloy, mating plating material is gold
- Plating termination material is tin, resin material is high temperature thermoplastic
- Minimum insulation resistance is 100Mohm, maximum voltage is 150V
- Mating interface pitch is 1.5mm
- Maximum contact resistance is 20mohm, dielectric withstanding voltage is 500V AC/1 minute
- Crimp or compression termination interface style
- Wire insulation diameter is 1.10mm, wire size is 24AWG, wire/cable type is UL 1061
- Mates with 504050 Pico-lock SMT wire to board header
- UL 94V-0 nylon housing, -20 to +85°C operating temperature range
Product details
| Connector to Connector |
Pico-Lock Receptacle to Pico-Lock Receptacle |
| Connector Pitch |
1.5mm |
| Cable Length - Metric |
100mm |
| Product Range |
Pico-Lock OTS 15132 Series |
| Jacket Colour |
Black |
| No. of Positions |
10Ways |
| No. of Rows |
1 Row |
| Cable Length - Imperial |
3.9" |
| Wire Gauge |
24AWG |
| SVHC |
No SVHC (04-Feb-2026) |
