Description
Product Overview

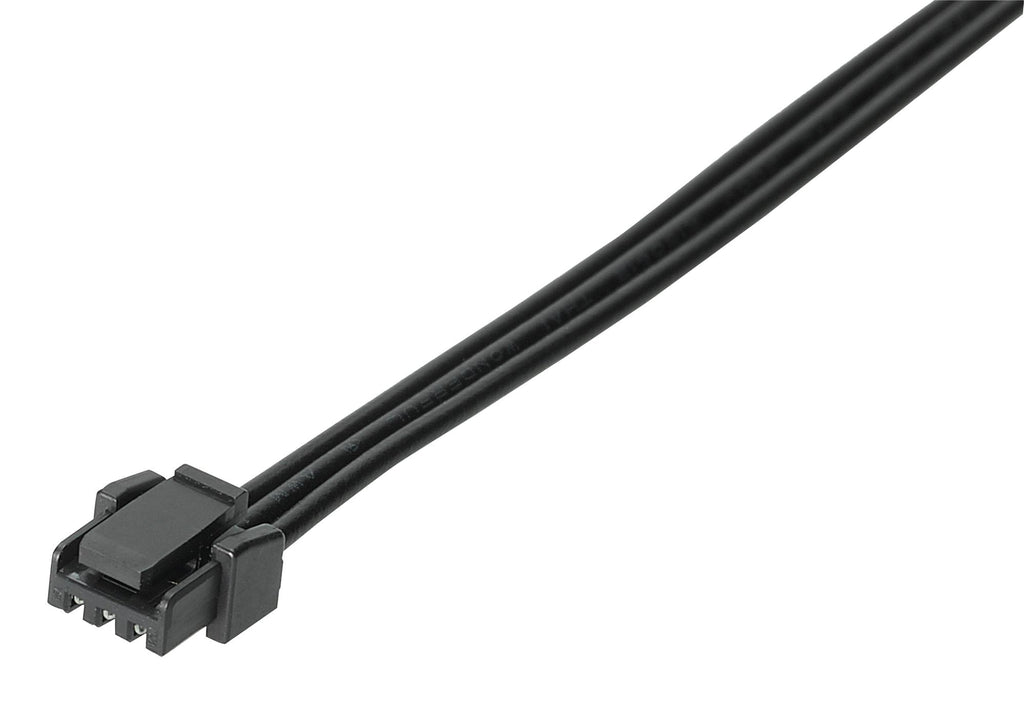

The 45111-0302 from Molex is a 45111 series Micro-Lock PLUS-to-Micro-Lock PLUS Off-the-Shelf (OTS) cable assembly. It is a single row, female to female cable assembly with 3 circuits. Micro-Lock plus cable assembly offers 1.25mm pitch form factor, carries 1.5A with positive lock and secures mating retention without sacrificing compactness.
- Cable length is 150mm, black colour resin
- Metal material is copper alloy, mating plating material is tin
- Plating termination material is tin, resin material is polyester
- Mating interface pitch is 1.25mm
- Crimp or compression termination interface style
- Wire insulation diameter is 0.98mm, wire size is 26AWG, wire/cable type is UL 1061
- Maximum voltage is 50VAC (RMS)/DC
- Mates with 505568 single row vertical header and 505567 single row right angle header
Applications
Commercial Vehicle, Consumer Electronics, Industrial, Medical
Product details
| Connector to Connector | Micro-Lock Plus Receptacle to Micro-Lock Plus Receptacle |
| Connector Pitch | 1.25mm |
| Cable Length - Metric | 150mm |
| Product Range | Micro-Lock Plus OTS 45111 Series |
| Jacket Colour | Black |
| No. of Positions | 3Ways |
| No. of Rows | 1 Row |
| Cable Length - Imperial | 5.9" |
| Wire Gauge | 26AWG |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | MOLEX |
| Part Number | 45111-0302 |
| Quantity | Each |
| Product Change Notice (429.32KB) EN | View or download |
| Technical Data Sheet (44.55KB) EN | View or download |
| Drawing (156.83KB) EN | View or download |
