Product Overview
The KEMET Goldmax series are radial leaded, standard Goldmax multilayer ceramic capacitor with X7R dielectric material. MLCCs are monolithic devices that consist of laminated layers of specially formulated ceramic dielectric materials interspersed with metal electrode system. The layered formation is then fired at high temperature to produce a sintered and volumetrically efficient capacitance device. A conductive termination barrier system is integrated on the exposed ends of the chip to complete the connection.
- Radial leaded form factor
- Non-polar device, minimizing installation concerns
- Capacitance change is limited to ±15% from -55°C to +125°C.
- Radial leaded form factor & Conformally coated
- Dimension is 7.36mm x 10.16mm (L x H)
- Capacitance change is limited to ±15% from -55°C to +125°C.
- Operating temperature range from -55°C to 125°C
Product details
| Capacitance |
3300pF |
| Capacitance Tolerance |
± 10% |
| Dielectric Characteristic |
X7R |
| Capacitor Case / Package |
Radial Leaded |
| Product Diameter |
- |
| Product Width |
2.54mm |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
| Voltage(DC) |
100V |
| Capacitor Terminals |
Radial Leaded |
| Lead Spacing |
2.54mm |
| Product Range |
GoldMax 300 Series |
| Product Length |
3.81mm |
| Product Height |
3.14mm |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
KEMET |
| Part Number |
C315C332K1R5TA |
| Quantity |
Each |

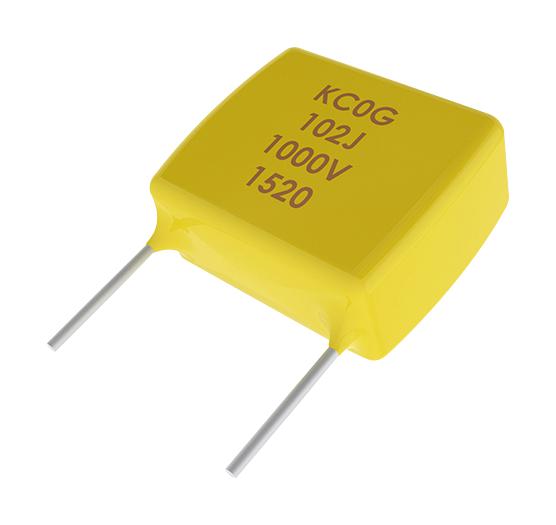

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
