Product Overview

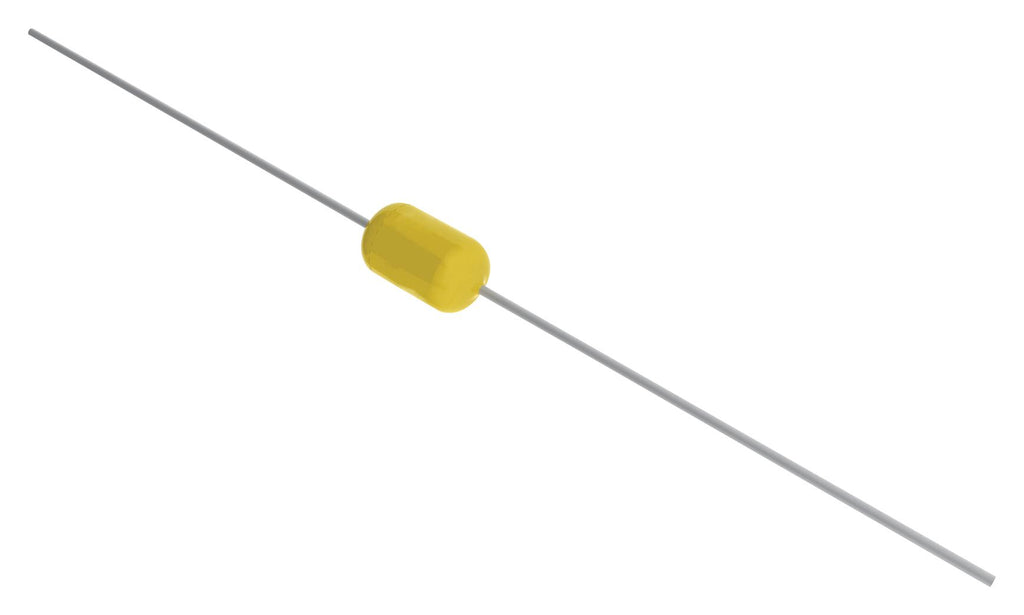

The Aximax series axial leaded Ceramic Capacitor with X7R dielectric. The Electronics Industries Alliance (EIA) characterizes X7R dielectric as a class II temperature stable material. Components of this classification are fixed, ceramic dielectric capacitors suited for bypass and decoupling applications or for frequency discriminating circuits where Q and stability of capacitance characteristics are not critical. X7R exhibits a predictable change in capacitance with respect to time and voltage and boasts a minimal change in capacitance with reference to ambient temperature. Capacitance change is limited to ±15% from -55 to +125°C. These devices meets the flame test requirements outlined in UL standard 94V-0. It is suitable for decoupling, bypass, filtering and transient voltage suppression.
- Non-polar device, minimizing installation concerns
- 100% Pure matte tin-plated lead finish allowing for excellent solderability
- SnPb-plated lead finish option available (Sn60/Pb40)
- DC voltage ratings of 25, 50, 100, 200 and 250V
- Capacitance offerings ranging from 10pF to 10μF
- Available capacitance tolerances of ±5%, ±10% and ±20%
Product details
| Capacitance |
0.1µF |
| Capacitance Tolerance |
± 10% |
| Dielectric Characteristic |
X7R |
| Capacitor Case / Package |
Axial Leaded |
| Product Diameter |
2.54mm |
| Product Width |
- |
| Operating Temperature Min |
-55°C |
| Qualification |
- |
| Voltage(DC) |
50V |
| Capacitor Terminals |
Axial Leaded |
| Lead Spacing |
- |
| Product Range |
AxiMax 400 Series |
| Product Length |
5.08mm |
| Product Height |
- |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
KEMET |
| Part Number |
C420C104K5R5TA |
| Quantity |
Each |
| Product Change Notice (227.31KB) EN |
View or download |
