Product Overview

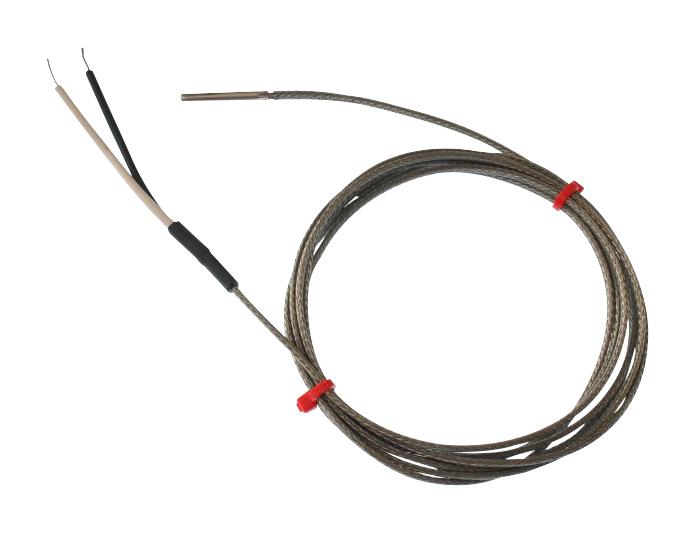

XF-1176-FAR is a fabricated grounded thermocouple in stainless steel tube.
- Thermocouple type J
- 4 x 25mm diameter x length
- Thermocouple junction is grounded at tip for fast response
- 2m cable length
- Glassfibre stainless steel overbraided cable type
- Bare wire tails cable termination
- Maximum temperature is +350°C, minimum temperature is -60°C
- Meets IEC standard
Product details
| Thermocouple Type |
J |
| Measured Temperature Max |
- |
| Sensor Body Material |
Stainless Steel |
| Lead Length - Metric |
2m |
| Probe Length - Metric |
25mm |
| Probe Diameter - Metric |
4mm |
| Thermocouple Termination |
Bare Wire |
| Thermocouple Shielding |
Shielded |
| SVHC |
No SVHC (04-Feb-2026) |
| Measured Temperature Min |
- |
| Sensing Temperature Max |
350°C |
| Lead Length - Imperial |
80" |
| Probe Length - Imperial |
1" |
| Probe Diameter - Imperial |
0.157" |
| Insulation |
Glassfiber |
| Thermocouple Wire Standard |
IEC |
| Product Range |
- |
Other details
| Brand |
LABFACILITY |
| Part Number |
XF-1176-FAR |
| Quantity |
Each |
| Technical Data Sheet (737.44KB) EN |
View or download |
| Enhanced Product Overview (1.62MB) EN |
View or download |
