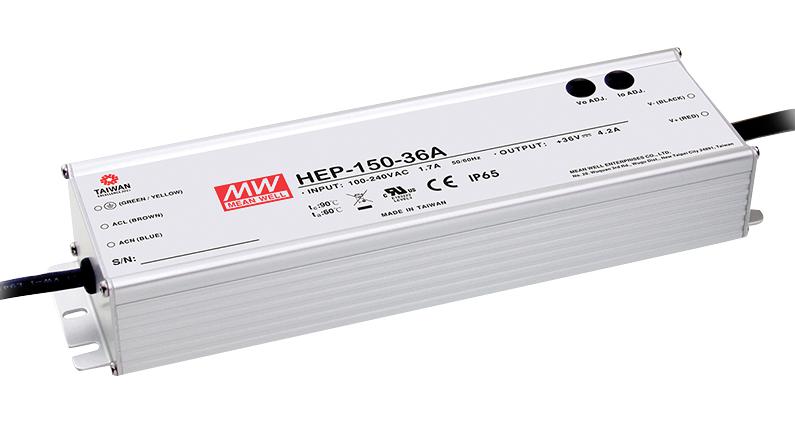

Product Overview
The HEP-150 series is a 150-153.6W AC/DC enclosed power supply with the capabilty to operate under harsh humid and dusty environments house in a aluminium case potted with heat-conducted sillicone.
- Built in power factor correction (0.92)
- 92% efficiency
- Cooling fan auto controlled
- Universal AC input
- IP65 Rated - IP68 optional
- Short circuit, overload, over voltage and over temperature protected
- 6-year warranty
- CE and CB approved
- Dimensions (HxWxD): 39x68x228mm
Product details
| Power Supply Applications |
ITE |
| Output Power Max |
150W |
| Output Current - Output 1 |
10A |
| Output Current - Output 2 |
- |
| Output Current - Output 3 |
- |
| Output Current - Output 4 |
- |
| Power Supply Output Type |
Adjustable, Fixed |
| SVHC |
No SVHC (04-Feb-2026) |
| No. of Outputs |
1Outputs |
| Output Voltage - Output 1 |
15VDC |
| Output Voltage - Output 2 |
- |
| Output Voltage - Output 3 |
- |
| Output Voltage - Output 4 |
- |
| Input Voltage VAC |
90V AC to 305V AC |
| Product Range |
HEP-150 Series |
Other details
| Brand |
MEAN WELL |
| Part Number |
HEP-150-15A |
| Quantity |
Each |
| Technical Data Sheet (90.87KB) EN |
View or download |
