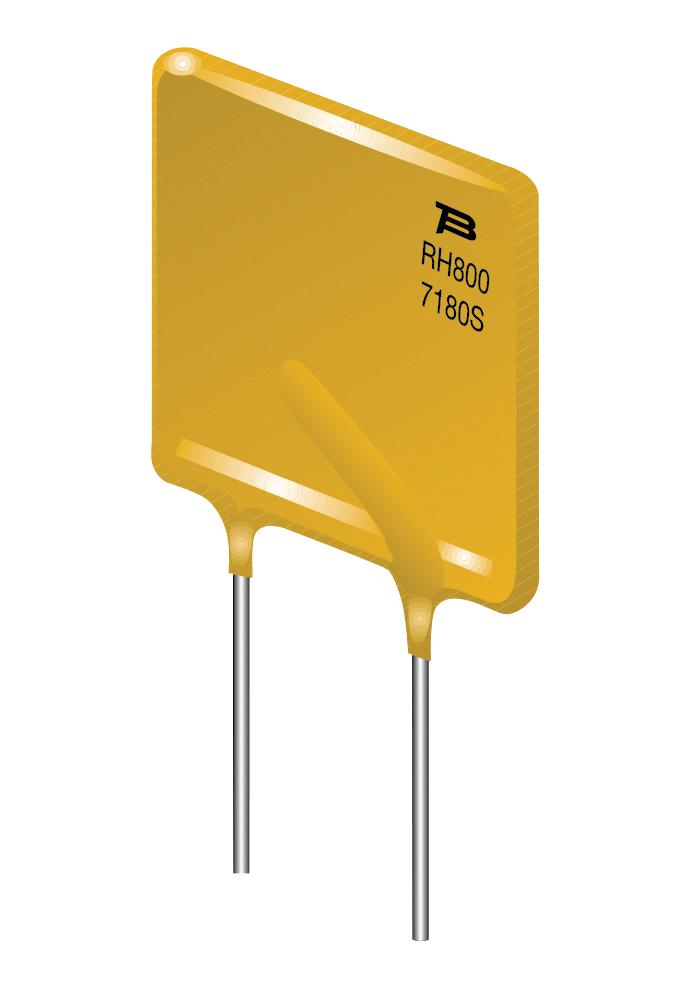

Product Overview
The Automotive compliant MF-RHT Series offer resettable fault protection of general electronic equipment. With an operating temperature of upto 125°C, a choice of operating currents and low thermal derating factor, the AEC-Q200 compliant MF-RHT Series is suitable for many automotive applications.
- Compliant with AEC-Q200 Rev-C - Stress Test Qualification for Passive Components in Automotive Applications
- Operating Temperature range up to 125°C
- Low thermal derating factor
- Higher hold currents at elevated temperature
- Choice of operating currents
- Resettable fault protection of general electronic equipment
Product details
| Product Range |
MF-RHT |
| Holding Current |
9A |
| Time to Trip |
10s |
| Current Rating Max |
100A |
| Diameter |
- |
| Thickness |
3mm |
| Operating Temperature Min |
-40°C |
| Automotive Qualification Standard |
AEC-Q200 |
| Voltage Rating |
16VDC |
| Trip Current |
16.5A |
| Fuse Shape |
Rectangular |
| Lead Spacing |
5.1mm |
| Length |
16.5mm |
| Height |
25.7mm |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (04-Feb-2026) |
