Product Overview

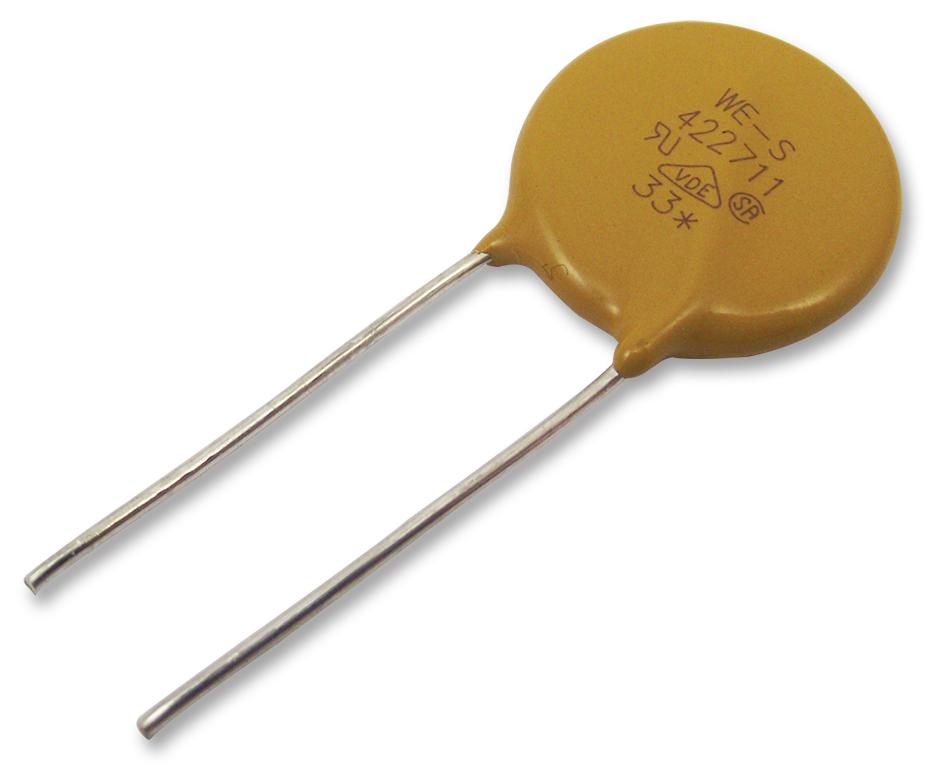

WURTH ELEKTRONIK 820514611 TVS Varistor, 460 V, 615 V, WE-VD, 1.24 kV, Disc 10mm, Metal Oxide Varistor (MOV)
Product details
| Voltage Rating VAC |
460V |
| Product Range |
WE-VD |
| Varistor Case Style |
Disc 10mm |
| Peak Surge Current @ 8/20µs |
2.5kA |
| Operating Temperature Max |
125°C |
| Automotive Qualification Standard |
- |
| Voltage Rating VDC |
615V |
| Clamping Voltage Vc Max |
1.24kV |
| Varistor Type |
Metal Oxide Varistor (MOV) |
| Operating Temperature Min |
-40°C |
| Peak Energy (10/1000uS) |
90J |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
WURTH ELEKTRONIK |
| Part Number |
820514611 |
| Quantity |
Each |
| Technical Data Sheet (1.13MB) EN |
View or download |
| Product Change Notice (265.00KB) EN |
View or download |
