Product Overview

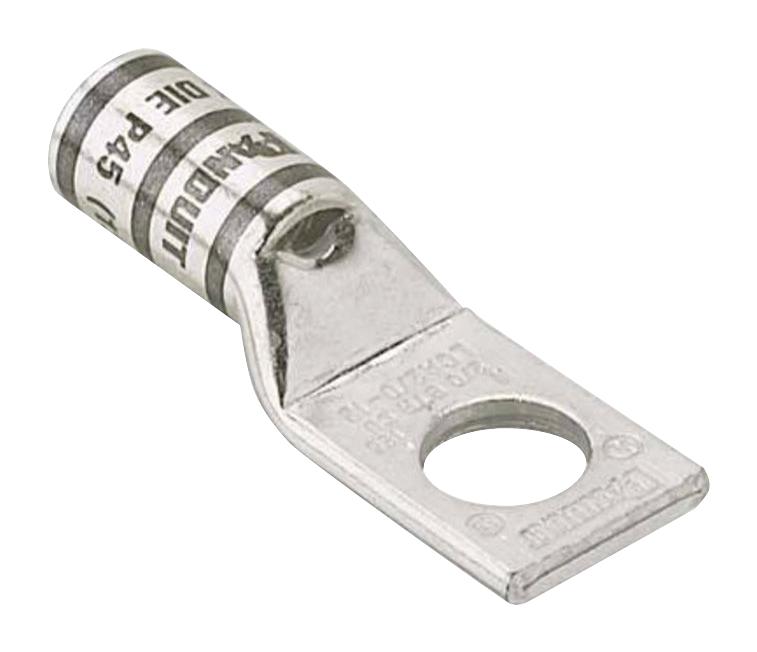

- One-hole code conductor standard barrel with window lug
- Color-coded barrel marked with Panduit, specified competitor die index num for crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- Tested by Telcordia - meets NEBS Level 3
- For use with stranded copper conductors
Product details
| Product Range |
LCA |
| Wire Size AWG Max |
8AWG |
| Terminal Type |
Compression Lug |
| Stud Size - Imperial |
5/16" |
| SVHC |
No SVHC (04-Feb-2026) |
| Termination |
Crimp |
| Conductor Area CSA |
- |
| Stud Size - Metric |
M8 |
| Insulation |
Non Insulated |
Other details
| Brand |
PANDUIT |
| Part Number |
LCA8-56-L |
| Quantity |
Each |
| Technical Data Sheet (105.03KB) EN |
View or download |
