Product Overview

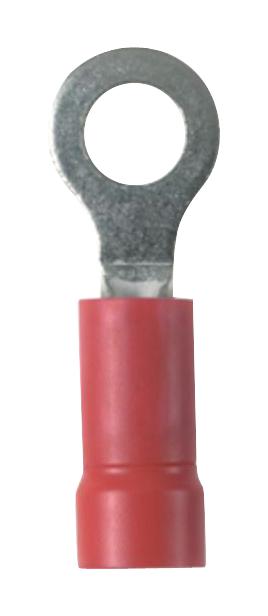

- Pan-Term® vinyl insulated funnel entry ring terminal
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL listed 587H E52164; CSA certified LR31212 standards
- For use with CT-100A, CT-600-A, CT-1550, CT-1551, CT-2500
Product details
| Stud Size - Metric |
M6 |
| Wire Size AWG Max |
18AWG |
| Product Range |
PV Series |
| Insulator Material |
Vinyl |
| Stud Size - Imperial |
1/4" |
| Conductor Area CSA |
1mm² |
| Insulator Colour |
Red |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
PANDUIT |
| Part Number |
PV18-14R-MY |
| Quantity |
Each |
| Drawing (352.70KB) EN |
View or download |
