Product Overview

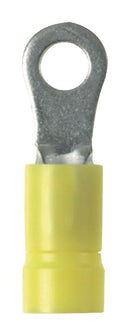

- Pan-Term® vinyl insulated funnel entry, heavy duty ring terminal
- Manufactured from stock 56% thicker than #16-14AWG terminal for use in heavy-duty applications
- Insulation housing is marked with “HDR” to signify heavy-duty ring
- Ring tongue design assures a secure connection in high vibration applications
- Insulation support helps to prevent wire damage in bending applications
- Brazed seam protects terminal barrel from splitting during the crimp process
- Internal barrel serrations assure good wire contact and maximum tensile strength
- UL flammability UL 94V-0, maximum insulation temperature 221°F (105°C)
- UL and CSA rated up to 600 V per UL 486A/B standard
Product details
| Stud Size - Metric |
M4 |
| Wire Size AWG Max |
12AWG |
| Product Range |
PV-HDR |
| Insulator Material |
Vinyl |
| Stud Size - Imperial |
#8 |
| Conductor Area CSA |
4mm² |
| Insulator Colour |
Yellow |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
PANDUIT |
| Part Number |
PV12-8HDR-L |
| Quantity |
Each |
| Technical Data Sheet (375.76KB) EN |
View or download |
