Product Overview
B32523 series metallized polyester film capacitors for general purpose applications. It is also used in blocking, coupling, decoupling and bypassing RFI for automotive applications.
- High pulse strength
- High contact reliability
- Parallel wire leads, lead-free tinned
- AEC-Q200D compliant
Product details
| Dielectric Type |
Metallized PET Stacked |
| Capacitance |
3.3µF |
| Voltage(AC) |
160V |
| Capacitor Mounting |
Through Hole |
| Humidity Rating |
GRADE II (Test Condition A) |
| Product Length |
26.5mm |
| Product Height |
20.5mm |
| Operating Temperature Min |
-55°C |
| Qualification |
AEC-Q200 |
| Capacitor Case / Package |
Radial Box - 2 Pin |
| Capacitance Tolerance |
± 5% |
| Voltage(DC) |
250V |
| Capacitor Terminals |
PC Pin |
| Lead Spacing |
22.5mm |
| Product Width |
11mm |
| Product Range |
B32523 Series |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (25-Jun-2025) |
Other details

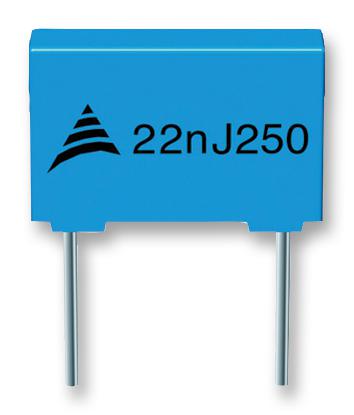

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
