Product Overview

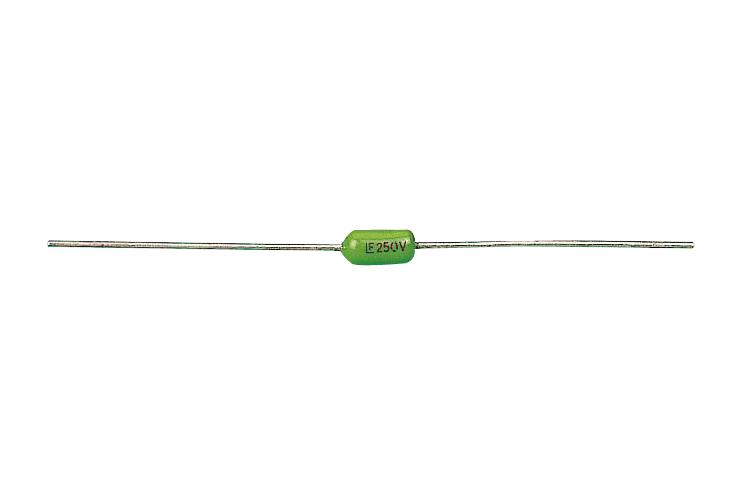

0263.250WRT1L 263 series PICO® fuse is a specially designed axial leaded fuse that achieves a 250V rating in a small package. The application includes lighting system, power supply, LCD/PDP TV, LCD monitor office automation machines, audio/video system, and medical equipment.
- Very fast–acting, small size
- Wide operating temperature range, low temperature rating
- Current rating is 0.250amp
- Preheat time range from 60 to 180 seconds
- Encapsulated, epoxy-coated material, solder coated copper leads body
- Operating temperature rating range from -55 to +125°C (consider re-rating)
- 50A at 250VAC interrupting rating
Product details
| Fuse Current |
250mA |
| Product Range |
PICO II 263 Series |
| Blow Characteristic |
Very Fast Acting |
| Breaking Capacity Current AC |
50A |
| SVHC |
To Be Advised |
| Voltage Rating VAC |
250V |
| Voltage Rating VDC |
- |
| Fuse Case Style |
Axial Leaded |
| Breaking Capacity Current DC |
- |
Other details
| Brand |
LITTELFUSE |
| Part Number |
0263.250WRT1L |
| Quantity |
Each |
| Product Change Notice (703.14KB) EN |
View or download |
| Technical Data Sheet (644.51KB) EN |
View or download |
