Product Overview

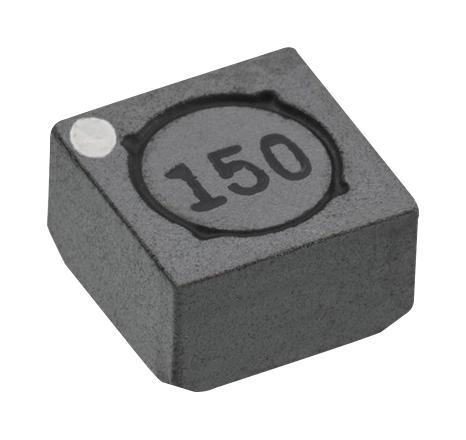

WURTH ELEKTRONIK 7448841033 Inductor, Powerchoke, 3.3 µH, 30%, 0.12 ohm, 5.2mm x 5.2mm x 3.1mm
Product details
| Product Range |
WE-DPC Series |
| RMS Current, Parallel |
1.9A |
| DC Resistance Max, Parallel |
0.12ohm |
| Turns Ratio |
1:1 |
| Product Width |
5.2mm |
| Inductor Mounting |
Surface Mount |
| Operating Temperature Max |
125°C |
| SVHC |
No SVHC (04-Feb-2026) |
| Inductance, Parallel |
3.3µH |
| Saturation Current, Parallel |
2.6A |
| Leakage Inductance |
130nH |
| Product Length |
5.2mm |
| Product Height |
3.1mm |
| Operating Temperature Min |
-40°C |
| Qualification |
- |
Other details
| Brand |
WURTH ELEKTRONIK |
| Part Number |
7448841033 |
| Quantity |
Each |
| Technical Data Sheet (654.99KB) EN |
View or download |
| Product Change Notice (363.92KB) EN |
View or download |
