Product Overview
CYUSB3065-BZXC is an EZ-USB® CX3 MIPI CSI-2 to superspeed USB bridge controller. Application includes digital video cameras, digital still cameras, webcams, scanners, video conference systems, gesture-based control, surveillance cameras, medical imaging devices, video IP phones, USB microscopes, and industrial cameras.
- USB 3.0 and USB 2.0 peripherals, compliant with USB 3.0 specification 1.0
- 5-Gbps USB 3.0 PHY compliant with PIPE 3.0, thirty-two physical endpoints
- CCI interface for image sensor configuration
- User-defined 8-bit, RAW8/10/12/14, YUV422 (CCIR/ITU 8/10bit), YUV444
- ARM926EJ-S core with 200MHz operation
- UART support of up to 4Mbps, SPI at 33MHz
- Twelve GPIOs, ultra-low-power in core power-down mode
- Independent power domains for core and I/O
- I²S, UART, and SPI operation at 1.8 to 3.3V, 5 for up to 4 MIPI CSI-2 lanes

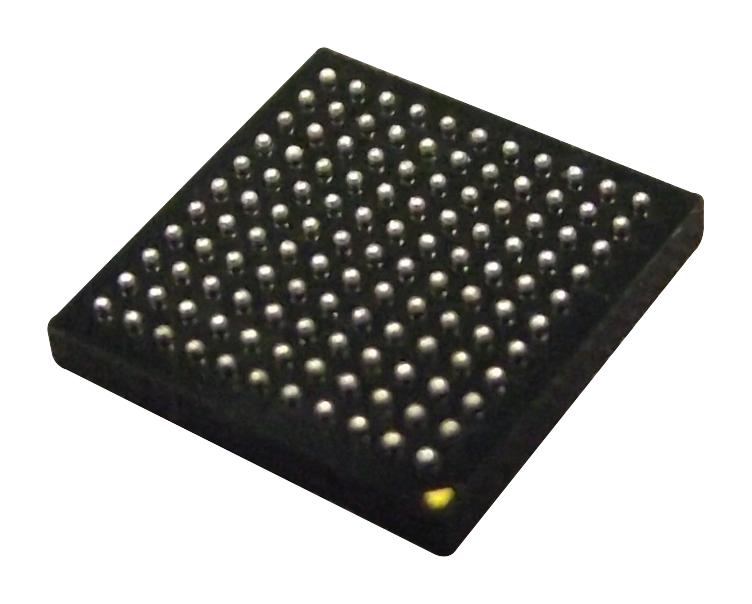

- 121-ball BGA package, commercial temperature range from 0°C to +70°C
Product details
| Bridge Type |
USB to I2C, I2S, SPI, UART |
| Supply Voltage Max |
1.25V |
| No. of Pins |
121Pins |
| Operating Temperature Max |
70°C |
| Qualification |
- |
| SVHC |
No SVHC (25-Jun-2025) |
| Supply Voltage Min |
1.15V |
| IC Case / Package |
BGA |
| Operating Temperature Min |
0°C |
| Product Range |
- |
| MSL |
MSL 3 - 168 hours |
Other details
| Brand |
INFINEON |
| Part Number |
CYUSB3065-BZXC |
| Quantity |
Each |
| Technical Data Sheet (553.91KB) EN |
View or download |
