Description
Product Overview

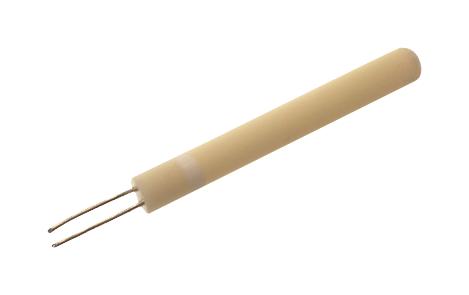

The XF-986-FAR from Labfacility is a platinum resistance Pt100 wire wound detector single element.
- Pt100 elements to IEC 60751 Class B
- Platinum coil wire wound construction sealed inside a high purity alumina ceramic body
- Optimum performance & stability
- Temperature range from -200°C to +650°C
- Ice point resistance of 100 ohm, fundamental interval (0°C to 100°C) of 38.5ohm (nominal)
- 0.02 to 0.3°C/mW self heating, 1mA measuring current
- 1.5mm diameter
- 8mm length
Applications
Sensing & Instrumentation
Product details
| RTD Type | Component with Leads |
| Sensing Temperature Max | 650°C |
| Resistance | 100ohm |
| Measured Temperature Max | 650°C |
| RTD Element Material | - |
| Probe Diameter | - |
| Cable Length - Metric | - |
| Cable Termination | - |
| SVHC | No SVHC (04-Feb-2026) |
| Sensing Temperature Min | -200°C |
| RTD Accuracy | Class B |
| Measured Temperature Min | -200°C |
| Resistance @ 0°C | 100ohm |
| Probe Material | - |
| Probe Length | - |
| Cable Length - Imperial | - |
| Product Range | - |
Other details
| Brand | LABFACILITY |
| Part Number | XF-986-FAR |
| Quantity | Each |
| Technical Data Sheet (714.06KB) EN | View or download |
| Enhanced Product Overview (2.38MB) EN | View or download |
| Application Note (170.25KB) EN | View or download |
| Miscellaneous (559.48KB) EN | View or download |
