Description
Product Overview

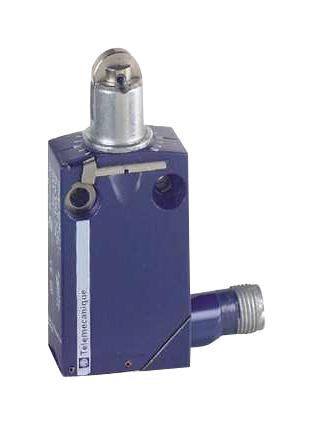

The XCMD2102M12 from Telemecanique Electric / Telemecanique is an OsiSense XC standard format, miniature design, XCMD limit switch with 4 pins M12 male connector. Ideal for harsh environment machines with space constraints. Approved by IEC 60947-5-1, EN 60947-5-1, UL 508, CSA C22-2 No. 14, IEC 60204-1, EN 60204-1 standards.
- Metal enclosure
- 2-pole 1 NC + 1 NO snap action switch
- Plunger head for linear movement
- Switch actuation by 30° cam
- Steel roller plunger for lateral cam approach
- Rated operational characteristics is Ue=240V, Ie=1.5A (AC-15, B300), Ue=250V, Ie=0.1A (R300, DC-13)
- Rated impulse withstand voltage is 4KV conforming to IEC 60947-1, IEC 60664
- Mechanical durability is 10 million operating cycles
- Degree of protection is IP66, IP67 and IP68 conforming to IEC 60529, IK06 conforming to EN 50102
- Operating temperature range from -25°C to +70°C
Applications
Industrial, Automation & Process Control
Product details
| Limit Switch Actuator | Roller Plunger |
| Contact Current AC Max | 1.5A |
| Operating Force Max | 7N |
| Contact Current DC Max | 100mA |
| SVHC | To Be Advised |
| Contact Configuration | SPDT |
| Contact Voltage AC Max | 240V |
| Product Range | OsiSense XC Series |
| Contact Voltage DC Max | 250V |
Other details
| Brand | TELEMECANIQUE SENSORS |
| Part Number | XCMD2102M12 |
| Quantity | Each |
| Miscellaneous (1.76MB) EN | View or download |
| Certificate of Conformity (4.45MB) EN | View or download |
| Manufacturer Catalogue (62.06MB) EN | View or download |
| Safety Data Sheet B (740.80KB) EN | View or download |
