| ₹ 69.8 includes GST and import duties. | |
| B2B customers can avail ₹ 10.64 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

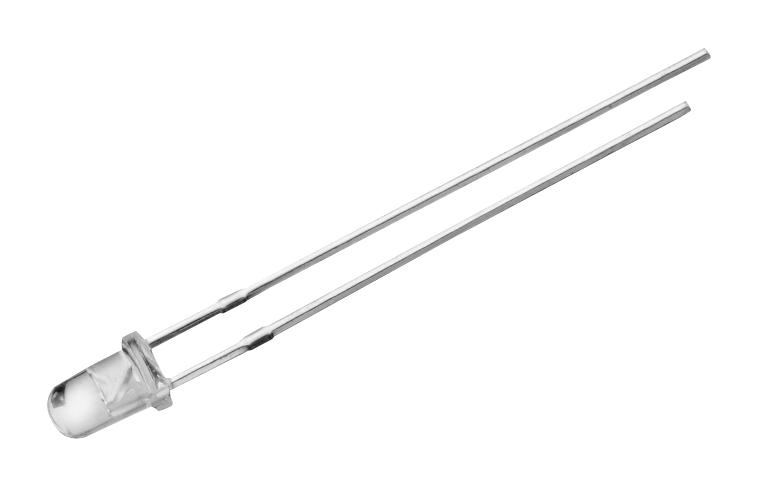

The 15400394A3590 from Wurth Elektronik is a Ø3mm WL-TIRW through hole infrared round waterclear LED. It is suitable for use in sensor technology, distance measurement, remote control, smoke detectors and data transmission.
- AlGaAs chip technology
- Waterclear lens type
- Peak wavelength is 940nm at 50mA
- Centroid wavelength is 940nm at 50mA, radiant intensity is 30mW/sr at 50mA
- Maximum forward voltage is 2V at 50mA
- Spectral bandwidth is 50nm at 50mA
- Viewing angle is 35° at 50mA
- Operating temperature range from -40°C up to +85°C
- Power dissipation is 220mW
- 2000V ESD threshold/human body model
Warnings
IR LEDs emit high intensity IR light do not look directly into the LED during operation this can be harmful to your eyes wear protective eyewear.
Product details
| Peak Wavelength | 940nm |
| Diode Case Style | T-1 (3mm) |
| Rise Time | - |
| Forward Current If(AV) | 50mA |
| Operating Temperature Min | -40°C |
| Automotive Qualification Standard | - |
| MSL | MSL 1 - Unlimited |
| Angle of Half Intensity | 35° |
| Radiant Intensity (Ie) | 30mW/Sr |
| Fall Time tf | - |
| Forward Voltage VF Max | 2V |
| Operating Temperature Max | 85°C |
| Product Range | WL-TIRW Series |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | WURTH ELEKTRONIK |
| Part Number | 15400394A3590 |
| Quantity | Each |
| Technical Data Sheet (950.58KB) EN | View or download |
| Product Change Notice (184.02KB) EN | View or download |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 68.4 |
| 3-5 | ₹ 67.71 |
| 5-10 | ₹ 66.31 |
| 10+ | ₹ 64.91 |
Bulk discount will be automatically applied during checkout based on quantity.
