Description
Product Overview

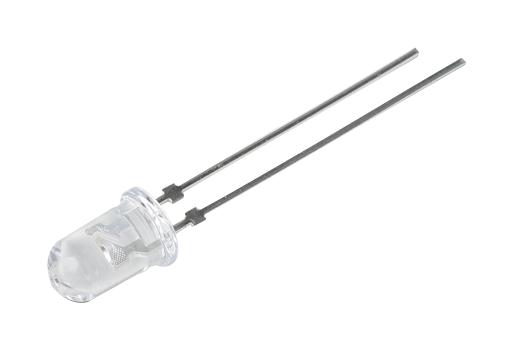

The 151054BS04500 from Wurth Elektronik is a Ø5mm WL-TMRW through hole mono-colour round waterclear LED. It features low energy consumption, high reliability, low current requirement, fast switching, no UV/IR radiation, easy installation and ultra high luminous efficacy. It is used in indicator light, displays traffic signal light, marker lights, commercial outdoor advertising, energy saving lamp, backlight, LED displays, electronic and optical indicator, PBC mounted panel indicator and Variable message sign.
- Peak wavelength of 461nm at 20mA
- Dominant wavelength of 465nm at 20mA
- InGaN chip technology, blue emitting colour and waterclear lens type
- Luminous intensity of 2000mcd at 20mA
- Maximum forward voltage of 3.6V at 20mA
- Spectral bandwidth of 20nm at 20mA
- Viewing angle of 45° at 20mA
- Operating temperature range from -40°C up to +85°C
- Versatile mounting on PC boards
Applications
Signalling
Product details
| LED Colour | Blue |
| LED Case Size | T-1 3/4 (5mm) |
| Forward Voltage | 2.7V |
| Luminous Intensity | 2cd |
| Lens Shape | Round |
| Automotive Qualification Standard | - |
| SVHC | No SVHC (04-Feb-2026) |
| LED Mounting | Through Hole |
| Forward Current If | 20mA |
| Wavelength Typ | 465nm |
| Viewing Angle | 45° |
| Product Range | WL-TMRW |
| MSL | MSL 1 - Unlimited |
Other details
| Brand | WURTH ELEKTRONIK |
| Part Number | 151054BS04500 |
| Quantity | Each |
| Product Change Notice (151.29KB) EN | View or download |
| Technical Data Sheet (985.90KB) EN | View or download |
