Product Overview

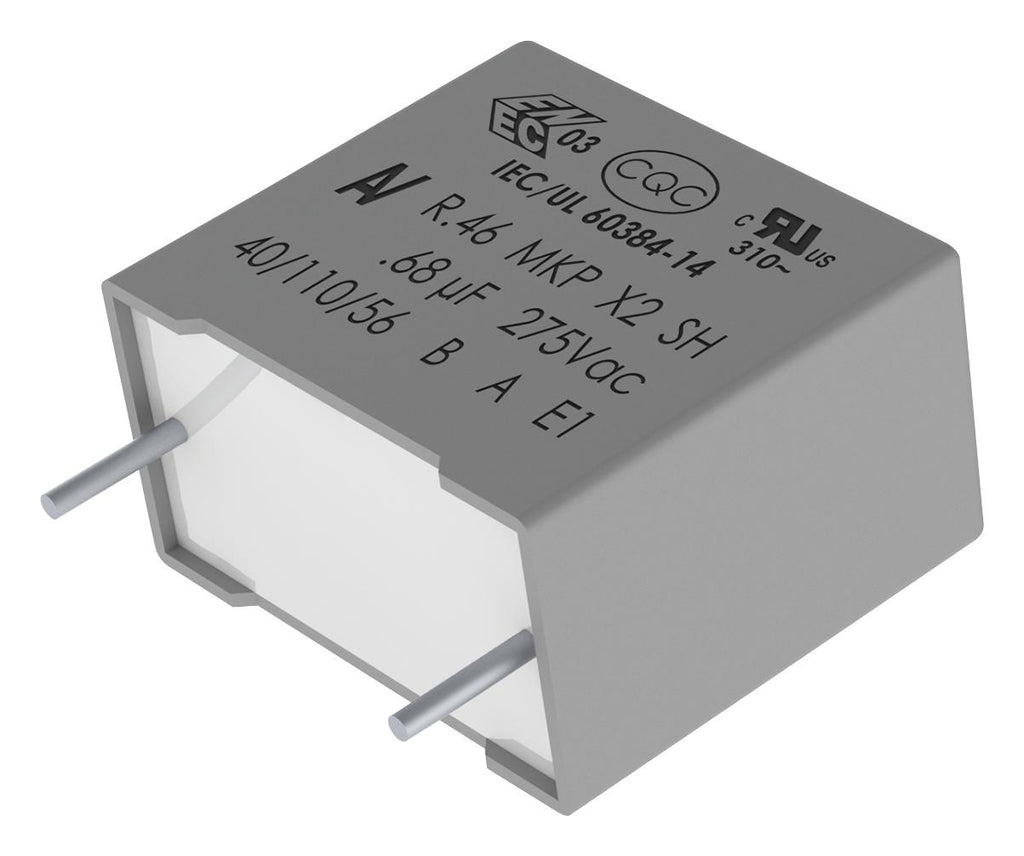

The R46 Series is constructed of metallized polypropylene film encapsulated with self-extinguishing resin in a box of material meeting the requirements of UL 94 V–0. For worldwide use in electromagnetic interference (EMI) suppression in across-the-line applications requiring X2 safety classification. Intended for use in situations where capacitor failure would not result in exposure to electric shock. Not for use in “series with mains” type applications.
- Capacitance value ranges from 0.01μF to 10μF
- Rated voltage is 275VAC
- Lead spacing varies from 10mm to 37.5mm
- ±10% and ±20% tolerance
- Operating temperature range -40˚C to +110˚C
- 100% screening factory test at 2,200VDC/1,500VAC
- Self healing properties
- ENEC, UL, cUL, CQC approval standards
- Climatic category 40/110/ 56, IEC 60068–1
Product details
| Dielectric Type |
Metallized PP |
| Capacitance |
1µF |
| Suppression Class |
X2 |
| Voltage Rating X |
275VAC |
| dv/dt Rating |
200V/µs |
| Lead Spacing |
22.5mm |
| Operating Temperature Max |
110°C |
| Qualification |
- |
| Capacitor Case / Package |
Radial Box - 2 Pin |
| Capacitance Tolerance |
± 10% |
| Capacitor Mounting |
Through Hole |
| Voltage Rating Y |
- |
| Humidity Rating |
GRADE II (Test Condition A) |
| Operating Temperature Min |
-40°C |
| Product Range |
R46 Series |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
KEMET |
| Part Number |
R46KN410000N1K |
| Quantity |
Each |
| Product Change Notice (267.37KB) EN |
View or download |
