Product Overview
SA15CA is a SA series axial leaded, TVS diode. The SA series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. It is ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits used in telecom, computer, industrial and consumer electronic applications.
- Excellent clamping capability
- Typical failure mode is short from over-specified voltage or current
- IEC-61000-4-2 ESD 30kV(air), 30kV (contact)
- ESD protection of data lines in accordance with IEC 61000-4-2
- EFT protection of data lines in accordance with IEC 61000-4-4
- Low incremental surge resistance
- Plastic package is flammability rated V-0 per Underwriters Laboratories
- Matte tin lead–free plated, glass passivated chip junction in DO-15 package
- 15V reverse standoff voltage, 18.50V max breakdown voltage, 1mA test current (TA=25°C)
- 24.4V max clamping voltage, 20.9A max peak pulse current (TA=25°C)
Product details
| Product Range |
SA |
| Reverse Standoff Voltage |
15V |
| Diode Case Style |
DO-204AC |
| Minimum Breakdown Voltage |
16.7V |
| Peak Pulse Power Dissipation |
500W |
| Diode Mounting |
Through Hole |
| SVHC |
No SVHC (27-Jun-2024) |
| TVS Polarity |
Bidirectional |
| Clamping Voltage Max |
24.4V |
| No. of Pins |
2Pins |
| Maximum Breakdown Voltage |
18.5V |
| Operating Temperature Max |
175°C |
| Qualification |
- |
Other details

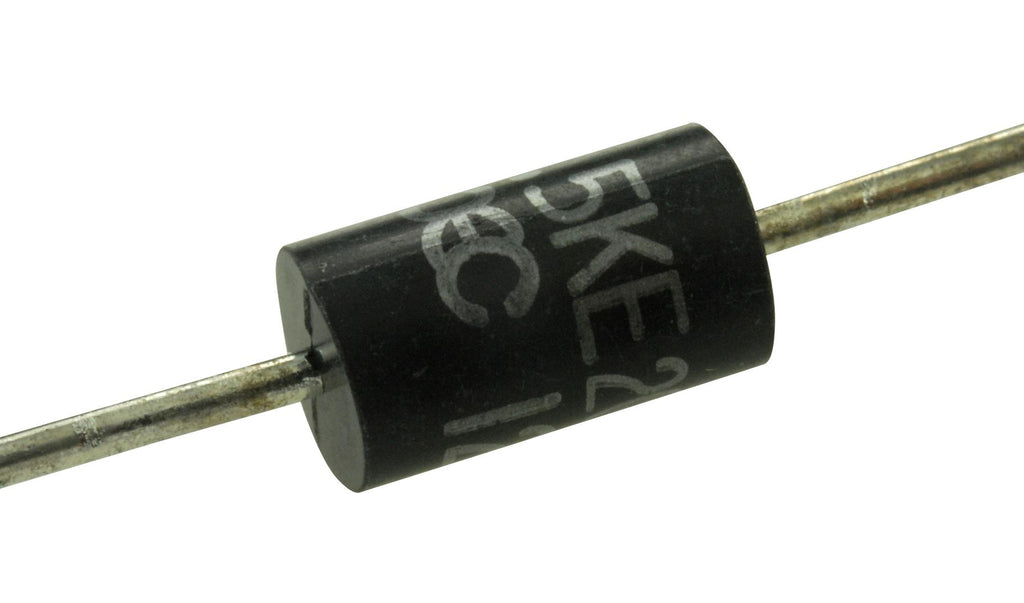

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
